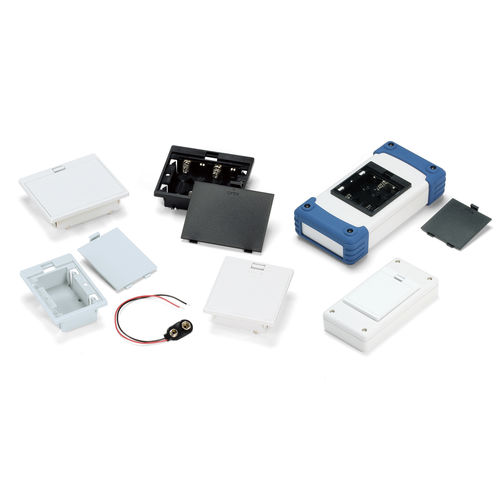

Battery box LD seriespanel-mountrectangularABS
Add to favorites
Compare this product
Characteristics
- Construction
- panel-mount
- Configuration
- rectangular
- Material
- ABS
- Application
- for controllers, for electronics, battery
- Other characteristics
- screw cover
- Width
52 mm, 64.5 mm, 82 mm
(2 in, 2.5 in, 3.2 in)- Height
18.5 mm, 21.5 mm
(0.7 in, 0.8 in)- Depth
74 mm
(2.91 in)
Description
Snap-in panel mount battery box.
Suitable to be installed into enclosures with a panel thickness of 1.0mm to 3.0mm.
Screw mounting is also possible with built-in M3 countersunk holes.
Lead-free soldered lead wire (UL certified, L = 140mm).
+/- markings are available to avoid incorrect placement of the battery.
Available for AA x 2, AA x 3, AA x 4, and 9V (006P) batteries.
Battery dimensions may vary depending on country and brand.
Use optional SCM battery cushion sponge to prevent rattling.
Specifications
See TAKACHI website for details.
Suitable to be installed into enclosures with a panel thickness of 1.0mm to 3.0mm.
Screw mounting is also possible with built-in M3 countersunk holes.
Lead-free soldered lead wire (UL certified, L = 140mm).
+/- markings are available to avoid incorrect placement of the battery.
Available for AA x 2, AA x 3, AA x 4, and 9V (006P) batteries.
Battery dimensions may vary depending on country and brand.
Use optional SCM battery cushion sponge to prevent rattling.
Specifications
- Material : ABS (UL94HB) / ABS (UL94V-0)
- Operating temperature : -10°C ~ +60°C
- 4 models available
- Available in Black, Light gray and White
See TAKACHI website for details.
