Aluminum enclosure ALR seriesdesktoprectangularextruded aluminum
Add to favorites
Compare this product
Characteristics
- Construction
- desktop
- Configuration
- rectangular
- Material
- aluminum, extruded aluminum, anodized aluminum
- Application
- electronic equipment, for electronics, for PC
- Other characteristics
- custom, extruded
- Width
Min.: 140 mm
(5.5 in)Max.: 362 mm
(14.3 in)- Height
Min.: 45 mm
(1.8 in)Max.: 100 mm
(3.9 in)- Depth
Min.: 140 mm
(5.51 in)Max.: 264 mm
(10.39 in)
Description

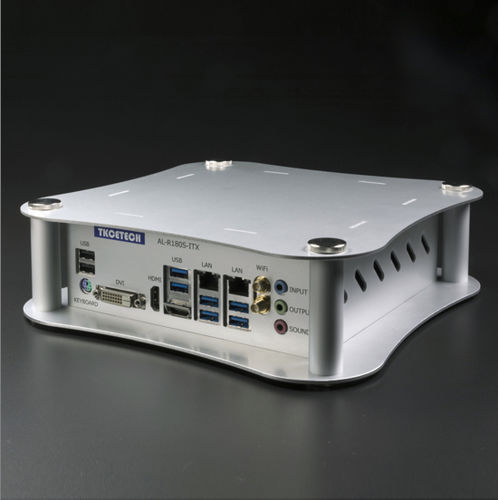

Curved arc designed aluminium case with corner support columns.
While elegantly designed, the flat panel structure allows for easy usage and customization.
Suitable to be used for embedded computers, audio amplifiers and power supply enclosures.
ALR11-5-17 and 11-8-17 models are compatible with the Euro Board.
ALR18-7-18 and 18-10-18 models are compatible with the Mini ITX board.
■ Custom length is available (ALRF series).
Specifications
See TAKACHI website for accessories and optional parts.
While elegantly designed, the flat panel structure allows for easy usage and customization.
Suitable to be used for embedded computers, audio amplifiers and power supply enclosures.
ALR11-5-17 and 11-8-17 models are compatible with the Euro Board.
ALR18-7-18 and 18-10-18 models are compatible with the Mini ITX board.
■ Custom length is available (ALRF series).
Specifications
- Material : Aluminium A1100P, extruded aluminium A6063S-T5
- 6 sizes available.
- Available in Silver (anodized).
See TAKACHI website for accessories and optional parts.
