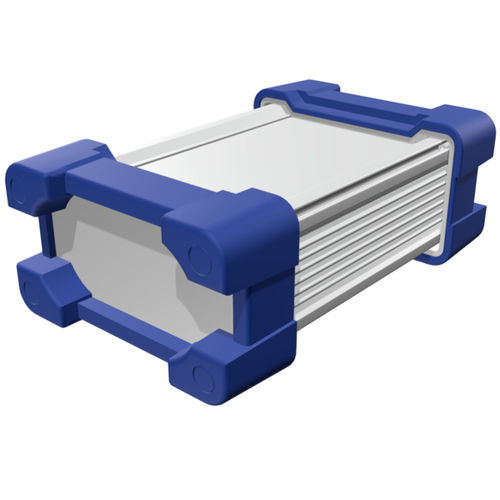

Shockproof enclosure AWP seriesdesktoprectangularaluminum
Add to favorites
Compare this product
Characteristics
- Construction
- desktop
- Configuration
- rectangular
- Material
- aluminum
- Application
- industrial, outdoor, network, for controllers, for measuring devices
- Protection level
- waterproof, impact-resistant, shockproof, IP68, EMC-shielded
- Other characteristics
- heat sink
- Width
Min.: 87.4 mm
(3.4 in)Max.: 213.9 mm
(8.4 in)- Height
Min.: 53.6 mm
(2.1 in)Max.: 95.1 mm
(3.7 in)- Depth
Min.: 114 mm
(4.49 in)Max.: 342 mm
(13.46 in)
Description
Rugged impact resistant enclosure with tough silicone boot protectors.
Specifically designed with heat dissipation effect, EMC shielding and IP68 rating.
PCB or chassis can be horizontally mounted by sliding into the body frame with grooves on the inside.
Suitable for measuring instruments, industrial control boxes, industrial camera housings, and other applications.
Specifications
See TAKACHI website for accessories and optional parts.
Specifically designed with heat dissipation effect, EMC shielding and IP68 rating.
PCB or chassis can be horizontally mounted by sliding into the body frame with grooves on the inside.
Suitable for measuring instruments, industrial control boxes, industrial camera housings, and other applications.
Specifications
- Material : Diecast aluminium ADC12, extruded aluminium A6063S-T5
- Protection class : IP68
- Operating temperature : -40°C ~ +105°C
- EMC shielded.
- 25 sizes available.
- Available in 6 color combinations.
See TAKACHI website for accessories and optional parts.
