Network enclosure MXF serieswith flangewall-mountcylindrical
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount, with flange
- Configuration
- cylindrical
- Material
- ABS, extruded aluminum
- Application
- electronic equipment, network, for telecommunication equipment
- Other characteristics
- round
- Width
Max.: 134.2 mm
(5.3 in)Min.: 60.9 mm
(2.4 in)- Height
Max.: 40.6 mm
(1.6 in)Min.: 23.4 mm
(0.9 in)- Depth
Max.: 134.2 mm
(5.28 in)Min.: 65 mm
(2.56 in)
Description

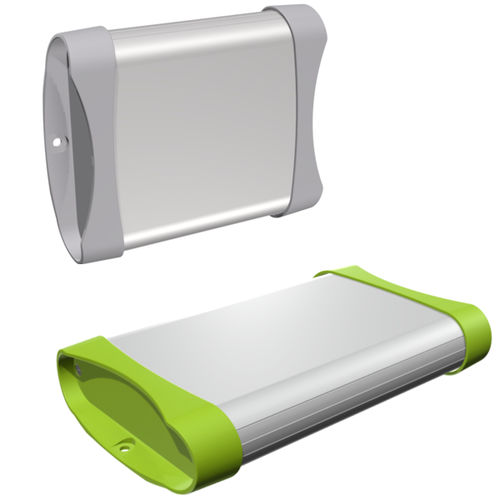

Flanged network enclosure with easy to hold rounded design.
Suitable to be used as transmitters, measurement tools, controllers, etc.
Grooves are built into the inside of the enclosure, allowing for easy sliding/insertion of PCB boards.
Specifications
See TAKACHI website for accessories and optional parts.
Suitable to be used as transmitters, measurement tools, controllers, etc.
Grooves are built into the inside of the enclosure, allowing for easy sliding/insertion of PCB boards.
Specifications
- Material : Extruded aluminium A6063S-T5, ABS (UL94HB)
- 12 sizes available.
- Available in 8 color combinations.
- Screws can be selected from Phillips head or Hexalobular head.
See TAKACHI website for accessories and optional parts.
