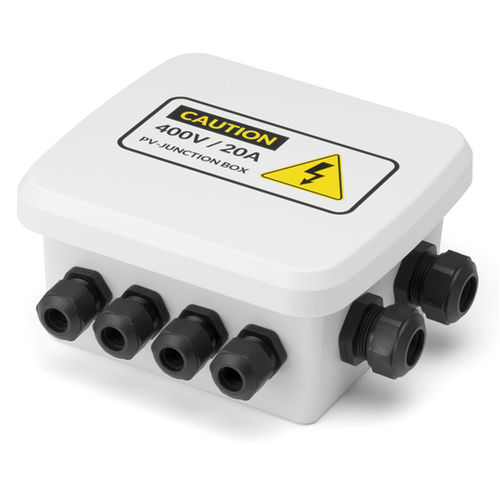

Wall-mounted junction box WG-J series

IP68polycarbonatePC

IP68 high performance plastic enclosure protected from immersion as long as 24 hours at 1m depth. Perfect for use as outdoor communication or network devices.
With a silicone waterproof gasket, and supported by multiple enclosing screws from the rear side, it allows the enclosure to maintain a stable high waterproofing capability.
Self-tapping captive screws are able to lock into a pre-drilled hole and provide a secure hold for fastening the cover. Please drive the self-tapping captive screws for cutting a thread into the holes at first so that the cover and body can be secured together properly.
By using the optional mounting accessories, it can be installed on walls and poles with ease.
Optional terminal blocks, WTB series can be installed onto the existing bosses inside the WG series box without additional processing or customization, hence can also function as a terminal junction box.

Specifications

• Material : ASA (UL94HB) / PC/ASA (UL94V-0)
• Protection class : IP68
• Operating temperature : -30°C ~ +60°C / 30°C ~ +75°C
• 16 sizes available.
• Available in Off-white and Light gray

See TAKACHI website for accessories and optional parts.
