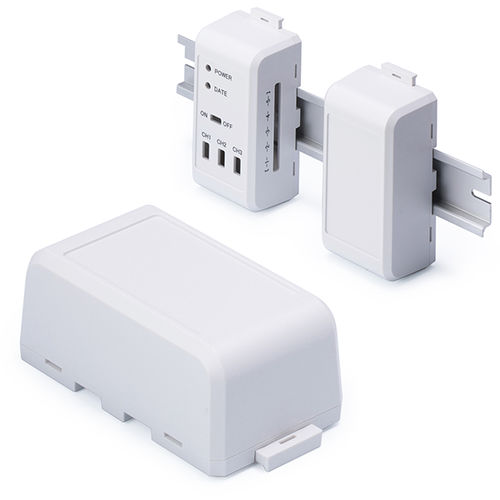

DIN rail enclosure DRC seriesmodularplasticABS plastic
Add to favorites
Compare this product
Characteristics
- Construction
- for DIN rail
- Configuration
- modular
- Material
- plastic, ABS plastic, polycarbonate
- Application
- electronic equipment, for electronics, for general purposes
- Protection level
- self-extinguishing, flame-retardant
- Other characteristics
- snap-in
- Width
Min.: 38 mm
(1.5 in)Max.: 90 mm
(3.5 in)- Height
35 mm
(1.4 in)- Depth
93 mm
(3.66 in)
Description
Plastic enclosure with mounting bracket for 35mm DIN rail.
Snap-in structure enables quick and easy assembly without the need for tools.
The DRC series can be easily installed and removed from the DIN rail with the pull lever.
Suitable for network modules, controllers, data loggers, etc.
Specifications
See TAKACHI website for accessories and optional parts.
Snap-in structure enables quick and easy assembly without the need for tools.
The DRC series can be easily installed and removed from the DIN rail with the pull lever.
Suitable for network modules, controllers, data loggers, etc.
Specifications
- Material : PC/ABS (UL94V-0)
- Operating temperature : -20°C to +60°C
- 4 sizes available.
- Available in Off-white.
See TAKACHI website for accessories and optional parts.
Catalogs
DRC series - DIN RAIL BOX
8 Pages
