Control electrical enclosure SKL seriesverticalplasticwith transparent cover
Add to favorites
Compare this product
Characteristics
- Function
- control
- Configuration
- vertical
- Material
- plastic
- Other characteristics
- with transparent cover
- Width
141 mm, 165 mm, 239 mm
(5.6 in, 6.5 in, 9.4 in)- Height
Max.: 102 mm
(4 in)Min.: 51 mm
(2 in)- Depth
141 mm, 225 mm, 239 mm
(5.55 in, 8.86 in, 9.41 in)
Description

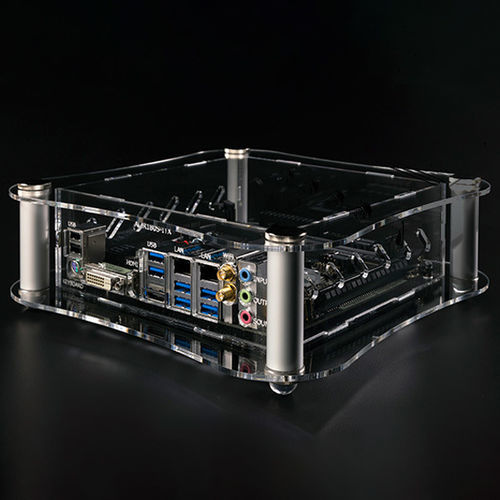

Curved transparent acrylic case with corner support columns.
Usable as a display enclosure for a unique and luxurious outlook.
SKL11-5-17 and 11-8-17 models are compatible with the Euro Board.
SKL18-7-18 and 18-10-18 models are compatible with the Mini ITX board.
Possible to be used in a flat layout, or a standing layout.
Knurled thumb screws for easy hand assembly.
Custom sized cases are available (SKLF series) on our website for further details.
※Ethanol and other alcoholic solvents may cause the acrylic panel to crack. Use a neutral cleaner or specialized acrylic cleaning solvent for cleaning.
Specifications
See TAKACHI website for accessories and optional parts.
Usable as a display enclosure for a unique and luxurious outlook.
SKL11-5-17 and 11-8-17 models are compatible with the Euro Board.
SKL18-7-18 and 18-10-18 models are compatible with the Mini ITX board.
Possible to be used in a flat layout, or a standing layout.
Knurled thumb screws for easy hand assembly.
Custom sized cases are available (SKLF series) on our website for further details.
※Ethanol and other alcoholic solvents may cause the acrylic panel to crack. Use a neutral cleaner or specialized acrylic cleaning solvent for cleaning.
Specifications
- Material : Acrylic, extruded aluminium A6063S-T5
- 5 sizes available.
See TAKACHI website for accessories and optional parts.
