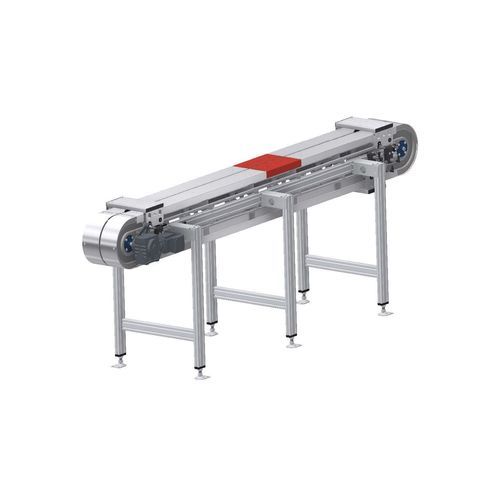

Accumulation conveyor TSF

belthorizontalworkpiece

Features and user benefits • Belt system suitable for accumulating transport • Characterized by the transport of workpieces above and below the belt body • Stopping and separating of one or more WTs (workpiece carriers) on defined hardened stop surfaces • WT load of up to 100 kg possible • 6 m/min standard conveying speed • Available in different sizes • Maintenance free Optional • Mechanical return stop • Sensor for workpiece carrier detection • Electromechanical stop/separation point • Pneumatic stop/separation point • Housing of the diverter stations • Pendulum flap with contour cut-out • Protection tunnel • Light scanner for component detection • Endless belt length > 20.000 mm • Pneumatic indexing of the workpiece carrier ± 0.1 mm • Lubrication unit for roller chain • Special position removal point of the workpiece carrier • Selection of the conveyor speed • Spacer between the workpiece carriers • Coupled workpiece carriers • And much more on request
