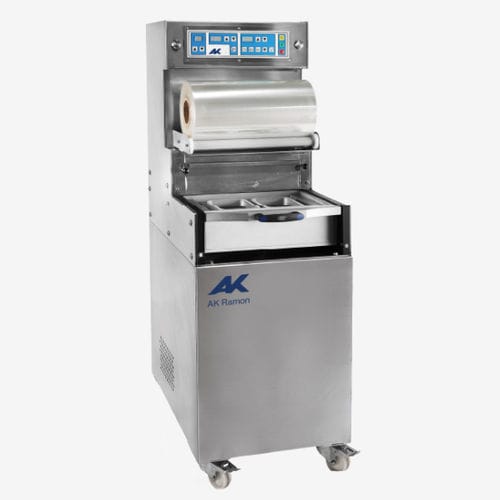

Automatic tray sealer TS-550

linearfor the food industryvacuum

Manufactured in AISI 304 stainless steel. Die set in anodized aluminum. Automatic tray sealing machine. Ergonomic and robust model. Perfect for transporting the food without loss of liquid or sauces. Easy change of die set, which are interchangeable in few seconds. Fast heating of the selected temperature. It allows to work with different types of tray materials, PP, PET, ALUMINIUM. BUSCH pump 20m³/h. Easy maintenance and cleaning. Voltage: 400V/3ph/50Hz. Options BUSCH pump 40 m³/h. BUSCH pump 20 m³/h for oxygen levels above 21%. Silent compressor. Standard molds With perimeter cut film 320×260 mm 1/2GN (1 tray) 260×160 mm 1/4GN (2 trays) 168X130 mm (1/8GN 4 trays) Perimeter cutting No perimeter cutting 320×260 mm 1/2GN (1 tray) 260×160 mm 1/4GN (2 trays) 168X130 mm 1/8GN (4 trays) Cutting from the back Any type and shape of mold can be manufactured according to the customer’s trays.
