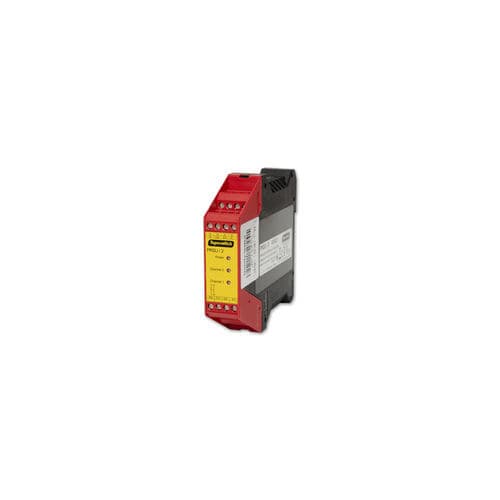

Safety control unit PRSU/2

DIN rail

Tapeswitch™ PRSU/2 control units are designed to be used with Tapeswitch™ pressure sensitive sensors to form a complete safety system. Sensors may take the form of safety mats, sensing edges, ribbon switches or bumpers. Full system installation instructions are supplied with the sensors. The PRSU/2 operates from a 24 VAC/DC supply. From this is derived a current-limited 24 VDC supply. The sensor and control circuit operate from this current-limited supply. The unit is housed in a DIN rail mounting enclosure with 12 integral terminals. This unit is intended to be mounted in an existing electrical enclosure on the machine. This existing enclosure must be sealed to a minimum rating of IP54. Safety Grade: - Category 3, PLe (EN ISO 13849-1) Supply Voltage: - 24 V AC/DC, 50 - 60 Hz Response Time: - < 30 ms Power Consumption: - 2, 5 VA Max. Inrush Current: - 1, 4 A Temperature Range: Operating - -25° - 55°C Reset Mode: - manual or Auto (Link Selectable) Safety Outputs: Device Type Contact Type/Quantity Contact Rating - Safety Relay, Force Operated Contacts 2x Normally Open 5 A @ 240 VAC Enclosure: Protection Rating Terminal Capacity Material - IP20 2 x 1, 5mm² Polycarbonate
