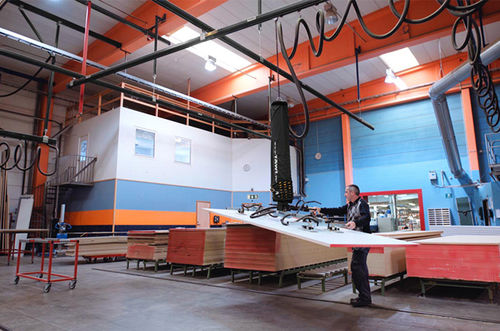

Single-girder overhead travelling crane

suspended

The rectangular work space of a single girder crane system offers optimal flexibility in all types of production. TAWI’s single girder cranes are: • Cost optimal • For rectangular working areas • Of high quality • Quickly delivered • Simply installed • Easy to use When to use single girder cranes With a single girder from TAWI you can: • Operate with three dimensions of freedom • Cover an entire workstation • Use both vacuum lifters and hoists • Lift up to 1500 kg • Have a bridge span up to 8 meters Structurally tucking away into all four corners of the space, or suspended only from the ceiling, the system allows for unhindered, three-dimensional operation. As great for a single-, as for multiple workstations, the system is the most popular for industrial applications. The TAWI Single girder crane system is the optimal open platform for most flexible material handling systems, not just because of the operational freedom, but also because of the cost efficiency, the high quality, the small amount of moving parts, the fast delivery as well as simple installation, use and maintenance. An open system for overhead movement in the x-y dimension is enabled by two beams, either in the form of floor attached arches or roof hanging rails, and at least one girder. Movement in the y- dimension is enabled by the tool of choice, either a TAWI vacuum lifter or hoist . The tool is hanged from the bridge and the accompanied vacuum tube or electrical cord is elegantly managed in the overhead structure of the single girder crane system.
