Angle, Straightness, Squareness, Parallelism Measurement Using Visual Autocollimator

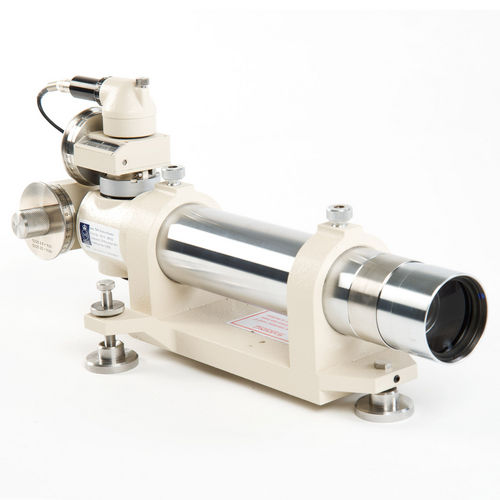

The TA51 visual autocollimator has a wide range yet maintains a high measurement accuracy, this system is popular in the measurement and calibration of indexing heads and other angular devices such as polygons and clinometers. Combined with optional Taylor Hobson's alignment software (manual data input) this autocollimator can provide measurement features such as angle straightness, squareness and parallelism. The addition of a CCTV camera with visual software allows the image to be magnified up to x8.
The system can be calibrated to traceable standards given the operator full confidence in results and maintaining high measurement integrity.
The system comes with a sturdy base with levelling capability allowing fast simple set up, the visual display and dual axis micrometers make this instrument a popular choice.
•Dual Axis micrometers
•Accuracy to 0.5 arc seconds
•Simple to use robust design with dual axis display
•Large measurement range of 10 mins
•Wide range of accessories
