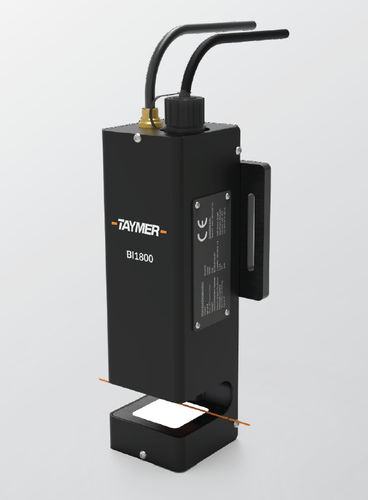

Digital inspection system BI1800

qualityfor fiber band marking

The Band Inspection System is the only tool available to automatically inspect band quality on coloring lines. The Band Inspection System is also capable of measuring diameter in 1 axis (Optional: 2 axes). These features will help you reduce costs in your production facilities through reduced rework and quality assurance The Band Inspection System uses high-speed, digital imaging to capture real time images of the fiber band markings. The digital images are enhanced, magnified and displayed on a monitor, enabling the operator to properly set up, visually confirm the bands, measure diameter and preview errors. The system is closely integrated with the line so that if any missing bands or diameter defects are detected, the operator is notified and the location and image is logged. The operator’s console can be located up to 200 feet or 60 meters from the Image Capture Station, allowing one operator to supervise multiple lines simultaneously. Features Captures line speeds as fast as 5000 ft/min or 1500 m/min Band inspection system designed to integrate seamlessly with production line PLC Images of defective bands are captured and provide complete Quality Assurance documentation Diameter measurement accuracy in 1 or 2 axes Small Footprint, LCD, Flat Panel Display Modular design allows unit to easily retro-mounted to machines in the field Operator Interface integration
