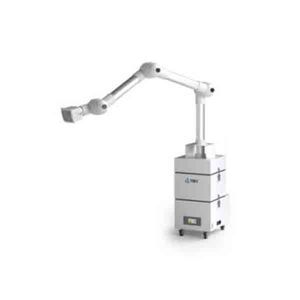

Mobile fume extractor TBH Health Basic
laboratorylaseractivated carbon filter

mobile fume extractor
mobile fume extractor
Add to favorites
Compare this product


Characteristics

Mobility
mobile
Applications
laser, laboratory
Filter type
activated carbon filter, with HEPA filter
Other characteristics
with extraction arm, compact
Airflow

Max.: 220 m³/h
(7,769 ft³/h)

Min.: 20 m³/h
(706 ft³/h)

Power

0.6 kW
(0.82 hp)

Description

The TBH Health Basic model is a cost-effective and space-saving solution for dermatology clinics, perfectly suited for sporadic laser applications such as ablation, vaporization, procedures with Q-switched pulses, as well as for the use of Erbium-YAG lasers or soldering torches. This portable system features an innovative InLine pre-filter that effectively captures smoke and virus-laden particles directly at the point of origin, extending the preservability of the main filter and reducing maintenance. With a 0.7 kW brush motor, designed for daily use of up to one hour, and an advanced two-stage filter consisting of a HEPA H13 particle filter and an activated carbon filter, it ensures a clean environment by efficiently removing hazardous particles. The DIN EN 1822 standard categorizes HEPA filters into classes H13 and H14, with H13 filters separating at least 99.95% and H14 filters at least 99.995% of particles from 0.1 to 0.3 µm. H13 is used for areas with high air purity requirements such as laboratories and hospitals, while H14 is used for even more sensitive areas such as clean rooms in semiconductor production. Technical details of the TBH Health Basic include - Maximum air volume flow: 220 m³/h - Effective air volume flow: 20 - 200 m³/h - Motor power: 0.7 kW - Drive: Brush motor - Noise level: approx. 64 db(A) - Filter structure: Two-stage filter (HEPA H13 particle filter and activated carbon filter), innovative InLine pre-filter - Tool-free filter change - The efficiency of the TBH hygiene concept has been confirmed by CleanControlling Medical GmbH & Co. KG.
