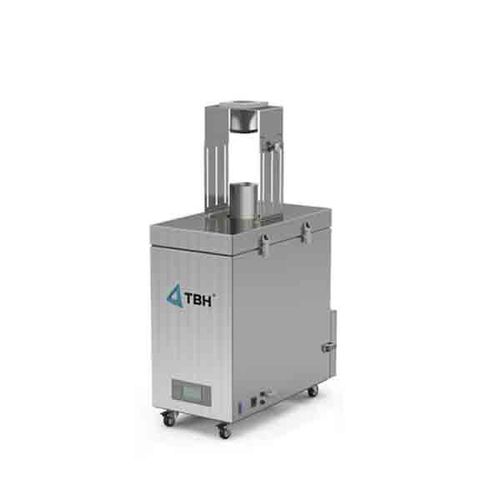

Particulate filtration system CR Series
duststainless steellaboratory

particulate filtration system
particulate filtration system
particulate filtration system
particulate filtration system
particulate filtration system
particulate filtration system
particulate filtration system
Add to favorites
Compare this product


Characteristics

Technology
particulate
Designed for
dust
Other characteristics
stainless steel, laboratory
Flow

Min.: 100 m³/h
(3,531.467 ft³/h)

Max.: 350 m³/h
(12,360.133 ft³/h)

Pressure

6,000 Pa
(0.87 psi)

Description

The CR series is an advanced extraction system for sensitive laboratory and pharmaceutical pre-production environments. It effectively cleans the air of viruses, bacteria and fungi to ensure a clean and safe working environment. Thanks to contamination-free filter replacement up to ISO class 5, it is ideal for air filtration in cleanroom cabins and cleanrooms according to various ISO standards. Features include: - Stainless steel housing for better cleaning. - High adsorption power with optional activated carbon to eliminate gases and odors. - Low noise and energy saving operation. - Advanced technology for capturing pollutant particles and low-contamination dust removal. - Molecular sieve for gaseous pollutants and options for air recirculation or exhaust air ducting. There are two product variants: 1. CR-GL 265 Z with particle filter, Z-Linepanel Plus filter and police filter. 2. CR-GL 265 ZA, additionally with an activated carbon filter. Technical data include: - Air volume flow: max. 350 m³/h. - Effective air volume flow: 100 - 300 m³/h. - Maximum static pressure: 6000 Pa. - Voltage range: 100-240 V. - Frequency: 50/60 Hz. - Motor power: 0.6 kW. - Sound level: approx. 55 db(A). - Serial interface: 25-pin Sub-D. The CR series offers an efficient solution for air purification in critical environments, combined with advanced technology, user-friendliness and sustainability.

VIDEO

Catalogs

CR SERIES
CR SERIES
16 Pages
