Portable, automatic, rechargeable battery powered thermocouple attachment unit. Capacitive discharge principle is used to attach a thermocouple wire to a workpiece ensuring accurate temperature recording and control of the workpiece.
Application: Variable energy output, selectable by the operator, suitable for attaching different sizes of thermocouple wire.
Optional manual or automatic mode.
Optimal for attaching thermocouples to hard-to-reach areas of the workpiece and when, for safety reasons, the operator must have one hand free.
On rechargeable battery
Automatic shutdown after three minutes to save battery
Maximum output voltage of 60 V

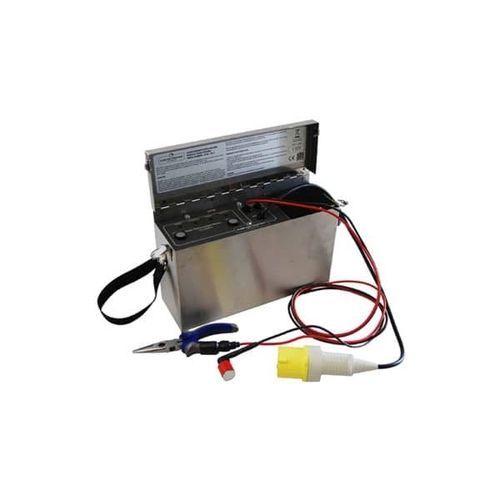

Stainless steel case with shoulder strap and tool storage
Comes with a set of pliers and a solder return magnet
Input voltage: 110V a.c. @ 50/60 Hz (230V a.c. on request)
Allows thermocouple wires to be attached to a part
Uses the principle of capacitive discharge to secure the wires
Once the thermocouple wires are attached, they can transmit and read the temperature with high accuracy
Ideal when the operator needs to keep one hand free and for parts with difficult to access areas of the part
