Fiber laser cutting machine DYNAMICLINE
for metalCNCcompact

fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
Add to favorites
Compare this product

Characteristics

Material
for metal
Technology
fiber laser
Control type
CNC
Other characteristics
compact
Laser power

Min.: 1,000 W

Max.: 12,000 W

Description

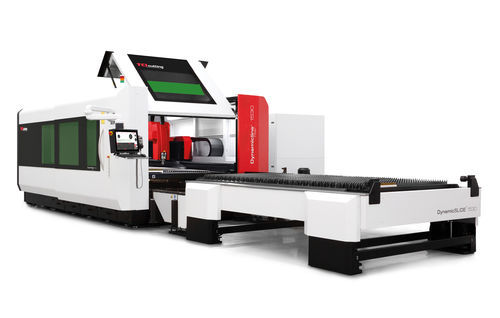

TCI Cutting Dynamicline Fiber is pure power, without losing sight of electrical and productive efficiency. With versions that reach up to 12 kW of cutting power and its design that includes linear motors, the possibility of cutting thicknesses of up to 30 mm reaching an acceleration of 3G and an accuracy of 3 microns. Travel speeds of up to 340 m / min guarantee the highest productivity for the most demanding customers. The team of engineers of TCI Cutting has achieved a cutting system, which combines the necessary features to produce the most complex cutting work and with the most innovative cutting options (automatic nozzle change, artificial vision camera …), never seen until this moment in a laser cutting system with fiber source. The energy saving and the cutting speed, added to the laser power, were the three main premises when designing the Dynamicline Fiber system, thus achieving a compact system of high performance for high productions. Characteristics - Technical Data Maximum permitted load - 950 Kg/m2 CNumber of cutting heads - 1 aximum simultaneous positioning speed - 340 m/min Maximum axial acceleration - 29,4 m/s2 (3G) Machine Tolerance - +-0,05mm/m Repeatability precision - +-0,025mm/m Power Output - De 1.000 W a 12.000 W Fully enclosed and cabined machine - Incluido Smoke extraction system - Incluido Cooling system - Incluido Automatic table exchanger - Incluido Automatic loader and unloader - Opcional
