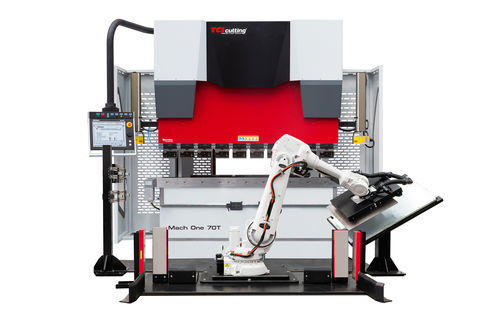

Hydraulic press brake Mach One®CNC2-axishigh-performance
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Control
- CNC
- Backgauge
- 2-axis
- Other characteristics
- high-performance, synchronized, precision, automatic, ergonomic
- Press force
Max.: 2,157 kN
Min.: 1,716 kN
- Folding length
Max.: 4,000 mm
(157.5 in)Min.: 3,000 mm
(118.1 in)- Engine power
Max.: 20 kW
(27.19 hp)Min.: 15 kW
(20.39 hp)- Bale weight
Max.: 13,000 kg
(28,660 lb)Min.: 10,000 kg
(22,046 lb)- Daylight
Max.: 550 mm
(22 in)Min.: 550 mm
(22 in)- Maximale stroke
Max.: 275 mm
(11 in)Min.: 275 mm
(11 in)
Description
Chromium coated and treated cylinders with a high precision of 0.001mm. Quick tightening flanges. Front support arms slidable to the length of the machine. Hydraulic power station of the HOERBIGER brand according to CE regulations. Two photocells on the back. High quality tooling. Optical linear rulers with precision of ± 0.01 mm.
Fully synchronized cylinders that provide the best folding in all occasions. Backgauge system with 2 axes (X = 800 mm and R), with ± 0.01 mm. repeatability, controlled by CNC DELEM D66T CNC Control. SIEMENS electrical elements. Reference of the axes automatically when the machine is running. Side protections according to CE regulations.
Fully synchronized cylinders that provide the best folding in all occasions. Backgauge system with 2 axes (X = 800 mm and R), with ± 0.01 mm. repeatability, controlled by CNC DELEM D66T CNC Control. SIEMENS electrical elements. Reference of the axes automatically when the machine is running. Side protections according to CE regulations.
