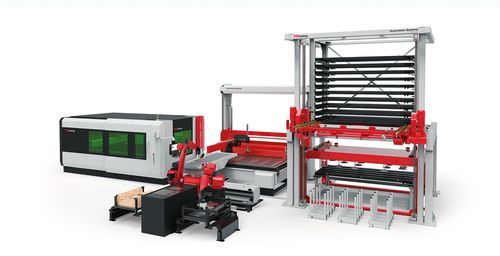

Pallet automation system

for production machinesfor workpiece storageRobot production system

Overview
Intelligent automation solutions for 2D laser cutting designed to increase productivity, reduce cycle time and enable flexible lot sizes. Systems combine machine integration, automated load/unload, vertical storage towers, smart sorting and palletizing, AMR distribution and production management via Manager PRO® for autonomous decision-making and plant-level optimisation.

Main benefits

• Higher productivity through simultaneous loading/unloading and reduced cycle times.
• 24/7 operation capability and improved machine utilisation.
• Customisable configurations (tray height/number, load/unload positions, modular add-ons) to match production needs.
• Integration with Manager PRO® for planning, order control and autonomous operational decisions.

Key modules and solutions

• Smart production island / Smart Cell: High-end sheet metal cutting cell with simultaneous loading and unloading, configurable storage and parts smart sorting. Options include palletizing and distribution to robots or AMRs.
• Load & Unload with Storage: Compact integrated system combining simultaneous loading/unloading and automated storage; trays and tower modules configurable by height and quantity.
• Compact Load & Unload Storage: Modular solutions ranging from basic handling to fully automated operation; shortens cycles and enhances safety.
• Smart Storage (TCI Tower): Vertical space optimisation with removable trays, material weighing and stock control; suitable for small-batch and long-run production.
• Load & Unload Bridge: Automated bridge loading system to accelerate order processing and reduce manual preparation.
• Load & Unload (compact): Simultaneous automated loading/unloading with material thickness measurement and optional storage module.
• Arm Load: Robotic arm-based sheet handling; typical capacity example — nominal sheet 3000 x 1500 mm, thickness 0.8–25 mm, max sheet weight 750 kg.
• Smart Sorting: Automated parts sorting and palletizing with distribution via AMR; sorting can be order-driven or operator-driven and integrated with Manager PRO®.
• Towers: SingleTower / DoubleTower modules for automated storage and feeding; removable trays support intra-company logistics and multi-machine supply.

What machines can be integrated
Automation Systems® solutions are engineered to integrate with the company’s range of laser and cutting machines. Examples of compatible machines referenced on the page:

• Dynamicline Fiber® (high productivity)
• Smartline Fiber® (accessibility / flexibility)
• Speedline Fiber® (XXL format)
• Smarttube Fiber® (profiles and tube cutting)
• Other 2D laser and cutting lines from the TCI portfolio

Operational features

• Simultaneous loading and unloading to minimise cycle times.
• Flexible real-time loading/unloading positions and options for elevated trays.
• Material weighing and inventory control integrated into automation logic.
• Optional double table to further reduce loading/unloading cycle time.
• Expandable with additional stations for independent material handling and multi-machine supply.
• Parts can be palletised in boxes, transferred to robots or distributed by AMR.

Software & Management
Manager PRO® provides production management, digital interconnection, autonomous decision logic, order planning and factory optimisation functionalities to coordinate automation, machines and intralogistics.

Technical specifications

• Nominal sheet dimension (Arm Load example): 3000 x 1500 mm.
• Sheet thickness (Arm Load example): 0.8–25 mm.
• Maximum sheet weight (Arm Load example): 750 kg.
• Storage towers: removable trays; configurable tray height and quantity per project.
• Storage control: integrated material weighing and stock management.
• Data & planning: integration with Manager PRO® for scheduling, sorting logic and autonomous decisions.
• Modularity: SingleTower/DoubleTower and additional modules (storage, sorting, palletizing, AMR distribution) can be added later.
