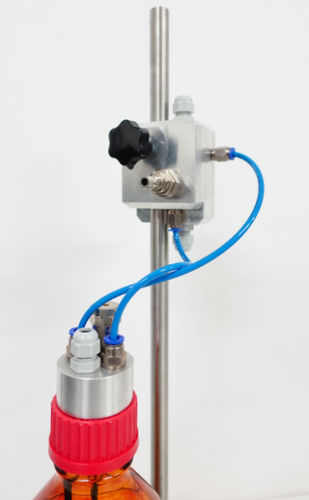

Aerosol generator X-Collison

There are many aerosol generators in the market and TCR Tecora® decided to develop a stable, constant and reliable polydisperse aerosol generator suitable for many applications. X-Collison Nebulizer can generate aerosol from DOP, olive oil, polystyrene latex spheres or solid particles. The key of our system is a double chamber where is possible to generate up to 107 particles/cm3 on line 1 and on the second line the same of 107 particles/cm3 . X-Collison Nebulizer generates sub-micrometer aerosol and can atomize solutions or suspension. Therefore, one of the main advantages compare to the other’s aerosol generator it is a double collision Jet with different size range wide the same aerosol out put. X-Collison — Small Quantity Vessel In this configuration can be combined different solution with a complete control of small quantity generation. With the help of vessel holder, it is possible to generate aerosol with different concentration from the same other solution. It is recommended to use of dry particles free zero air at the inlet port of X-Collison Nebulizer. TCR Tecora® developed an automatic pressure air generator with integrated HEPA Filter and Dryer, DDS Aero. It is possible to control flow and pressure to power X-Collison. A passive generator it is the best solution if available pressure air (oil free). X-Collison — Applications Filter Testing Efficiency; Material Synthesis; Biological and medical research; Instrument calibration; Research and Medical; Test with Polydisperse Aerosol; High Concentration; Double Median Curve Test.
