Overview

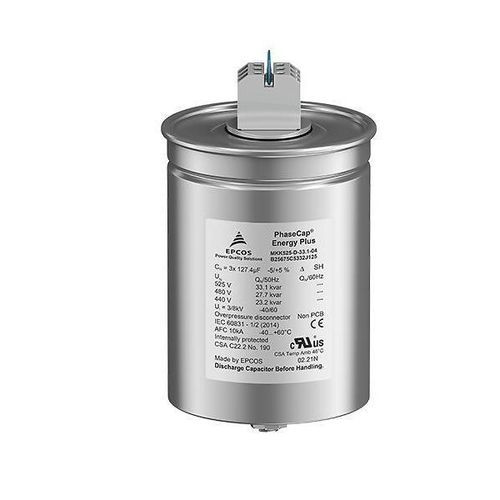

The PhaseCap Energy Plus series is the latest generation of capacitors for power factor correction (PFC) based on proven MKK technology. It offers extended service life, very high inrush and pulse current capability, compact can dimensions and is optimized for industrial PFC applications. Two versions are available: gas-filled (series B25674C*) and semi-dry biodegradable soft resin (series B25675C*). Both versions feature self-healing properties and a 3-phase overpressure disconnector. Voltage range 230 … 1000 V, outputs 5.0 … 60.0 kvar and four terminal types allow tailored selection.

Applications

• Automatic PFC equipment, capacitor banks
• Individual fixed PFC (e.g. motors, transformers, lighting)
• Group fixed PFC
• Tuned and detuned capacitor banks
• Dynamic PFC

Features

• Robust, reliable and compact design
• Comprehensive range of industrial capacitors
• MKK technology with wavy cut and heavy edge
• Voltage range: 230 … 1000 V
• Output range: 5.0 … 60 kvar

Customer benefits
Costs

• Reduced footprint thanks to higher packing density enabling more compact cabinets
• Shorter mounting and connection time
• Lower long-term investment costs due to extended service life

Electrical

• Ultra long life expectancy up to 240,000 hours (temperature class -40/D)
• Very high inrush current capability up to 500 · IR
• High pulse current withstand capability
• High long-term stability

Mechanical and maintenance

• Reduced mounting costs
• Maintenance-free in normal operation (periodic checks recommended)
• Highest packing density thanks to compact dimensions

Safety

• Self-healing dielectric
• 3-phase overpressure disconnector
• Touch-proof IP20 safety terminal
• Safe discharging: pre-mounted ceramic-base discharge resistor or discharge resistor module (type dependent)
• cUL approval (where indicated)
• B25674C*: Dry Nitrogen (N2) impregnation
• B25675C*: Biodegradable semi-dry resin impregnation

Environment

• PCB-free, RoHS compliant

Available types / example ranges (excerpt)
Rated voltage (V AC) | Product | Phases | Capacitance (µF) | Type range
230 - 690 | PhaseCap Energy resin 3-phase | 3 | 11.8 - 300.8 | MKK230-D-10.0-04 - MKK690-D-8.3-04
230 - 690 | PhaseCap Energy gas 3-phase | 3 | 11.8 - 300.8 | MKK230-D-10.0-03 - MKK690-D-8.3-03
230 - 690 | PhaseCap Energy Plus gas 3-phase | 3 | 11.8 - 300.8 | MKK230-D-10.0-03 - MKK690-D-8.3-03
230 - 1000 | PhaseCap Energy Plus resin 3-phase | 3 | 11.8 - 331.5 | MKK1000-D-15.0-04 - MKK900-D-30.0-04

Notes
The values above reflect typical specifications. Approve product specifications or request approval for your specifications before ordering.

Technical specifications

• Series: PhaseCap Energy Plus
• Model variants: B25674C* (gas-filled), B25675C* (semi-dry resin)
• Technology: MKK (wavy cut, heavy edge)
• Voltage range: 230 … 1000 V AC
• Output range: 5.0 … 60.0 kvar
• Capacitance range (examples): ~11.8 µF up to ~331.5 µF depending on type
• Number of phases: 3-phase types
• Expected life: up to 240,000 hours (temperature class -40/D)
• Inrush current capability: up to 500 · IR
• Discharge: pre-mounted ceramic-base resistor or discharge resistor module (type dependent)
• Safety: self-healing, 3-phase overpressure disconnector, IP20 safety terminal
• Approvals: cUL (where indicated)
• Environmental: PCB-free, RoHS
