Metalized polypropylene film capacitor DeltaCap™ X

cylindricalscrew terminalindustrial

Product overview

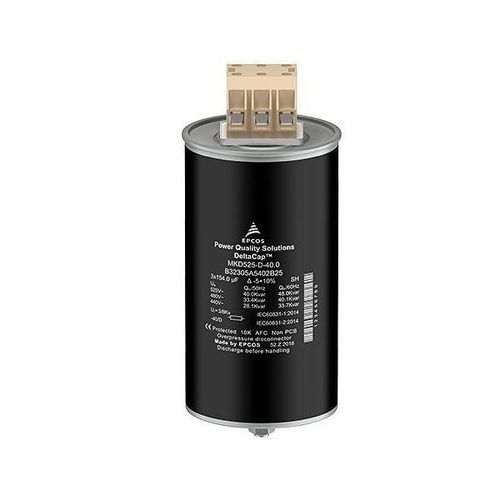

Based on metallized polypropylene (MKP) technology with stacked windings, DeltaCap™ X Black Premium capacitors are designed for low-voltage power factor correction (PFC) in demanding industrial environments. The compact black cylindrical aluminum can with stud provides a selective output and a wide rated voltage range for three-phase PFC applications.

Applications

• Automatic PFC banks
• Fixed compensation (e.g. motor compensation)
• Dynamic PFC
• Tuned and detuned PFC systems

Features

• Compact black cylindrical aluminum can with stud for space-efficient panels
• Metallized polypropylene (MKP) with stacked windings
• Reduced mounting and connection time
• Rated voltage range: 440 … 850 V AC
• Output range: 20 … 44 kvar (50 Hz)

Customer benefits
Costs

• Lower system cost through higher packing density and compact cabinet footprint

Electrical

• Designed for three-phase installations
• Very long life expectancy: up to 300,000 h at temperature class -40/55
• High inrush current withstand capability (up to 500 · I_R)

Mechanical and maintenance

• Reduced mounting costs; easy installation and connection
• Compact volume for dense cabinet layouts
• Maintenance-free in normal operation (except recommended periodic checks)
• Mounting positions: upright or horizontal

Safety

• Self-healing dielectric
• Overpressure disconnector
• Isolated terminal (IP20)
• Ceramic discharge resistor pre-mounted

Representative product variants (excerpt)
Type | Rated voltage (V AC) | Number of phases | Capacitance (µF)
MKD440-D-30.0-X | 440 | 3 | 165
MKD440-D-28.1-X | 440 | 3 | 154
MKD440-D-25.0-X | 440 | 3 | 137
MKD440-D-20.0-X | 440 | 3 | 110
MKD480-D-33.0-X | 480 | 3 | 152
MKD480-D-30.0-X | 480 | 3 | 138
MKD480-D-28.0-X | 480 | 3 | 129
MKD480-D-25.0-X | 480 | 3 | 115
MKD525-D-37.0-X | 525 | 3 | 143
MKD525-D-33.0-X | 525 | 3 | 127
MKD525-D-28.0-X | 525 | 3 | 108
MKD525-D-25.0-X | 525 | 3 | 96
MKD525-D-20.0-X | 525 | 3 | 77
MKD850-D-35.0-X | 850 | 3 | 51

Technical characteristics / specifications

• Technology: Metallized polypropylene (MKP) with stacked windings
• Rated voltage: 440 V AC to 850 V AC (typical available rated voltages listed above)
• Output (50 Hz): typical product range 20 … 44 kvar
• Number of phases: 3 (three-phase variants)
• Capacitance range (examples): ~51 µF up to ~165 µF depending on type
• Temperature class / life expectancy: up to 300,000 h at -40/55
• High inrush current withstand: up to 500 · I_R
• Protection / safety: self-healing dielectric, overpressure disconnector, isolated terminal (IP20), ceramic discharge resistor pre-mounted
• Mechanical: compact black cylindrical aluminum can with stud, suitable for upright or horizontal mounting
• Maintenance: maintenance-free (except recommended periodic checks)
