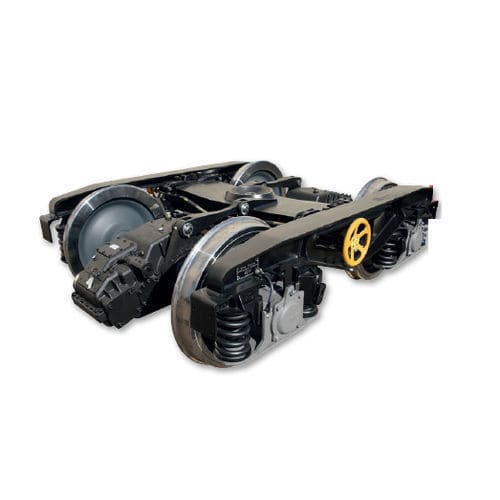

- Y25 bogie
- TECHNI INDUSTRIE
Y25 bogie TI 2023 Afor freightfor high speed trainsfor locomotives
Add to favorites
Compare this product
Characteristics
- Bogie type
- Y25
- Train type
- for freight, for high speed trains, for locomotives, for commuter trains, for regional trains, for metros, for funicular railways, for light rail vehicles, for tramway
- Track gauge
- 1435 mm
- Braking type
- disc brake, with compact brake, with standard brake levers
- Regulations and standards
- AAR, TSI, UIC 510, EN, ISO
- Other characteristics
- powered, 2-axle, 3-axle
- Load capacity (tons/axle)
22.5 t
(24.8 us ton)- Maximum supported speed
100 km/h, 120 km/h
(62 mph, 75 mph)- Bogie mass
3,987 kg
(8,789.8 lb)- Wheel diameter
920 mm
(36.2 in)
Description
TECHNI INDUSTRIE is a major player in the field of railway freight manufacture.
This «unrivalled » experience has enabled us to acquire unique expertise in railway freight design, manufacture, product support and assessment.
In addition to the controlled integration of outsourcing activities, we offer our own range of products that we export throughout almost all European Union countries.
TECHNICAL CHARACTERISTICS:
Axle load: 22.5 Tonnes.
Speed: 100 Km/h.
Gauge: UIC
Pivot height: 925(+3/-5).
Dimensions : 2767 x 2340.
Wheelbase: 1800.
Braking system: Classic linkage, 1Bgu amplification 2, 8 COFREN C810 or ABEX 333 shoes.
Weight: 4250 Kg.
Wheel Ø: 920 mm.
Track: 1435 mm.
S.N.C.F. / R.E.N.F.E. validation : UIC 518 , 510-3, 432, 544-1. S.N.C.F.
Flexibility/Suspension height: 2.46 mm./T. up to 13.3 T. and 0.93mm./T. beyond.
Approval : CE (to STI/TSI)
