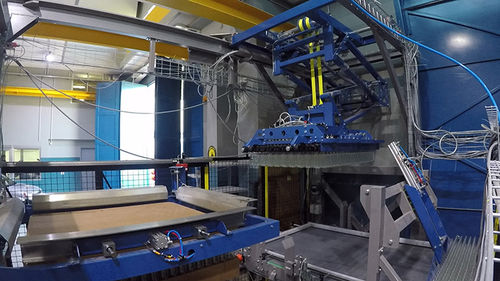

Pantograph palletizer

roboticfor cansfor bottles

Drop-type palletizing is not always possible if your products are delicate. Using a Pantograph mechanism, Technica developed a conventional layer palletizer suited for glass and other delicate products. Features • Pick and place head guided by a pantograph linkage system hanging from a top carriage • Complete layer pickup via vacuum head or inflatable tubes • Machine is equipped with a funnel mechanism to ensure straight and uniform palletizing • Possibility to add a fully automatic tray inserter for different shape of interlayers • Head is equipped with limit switches to detect any interference during the pick • Layer formation is done via servo motorized pusher • Heads are changeable and changeover is fast for different SKUs • Heavy duty mechanism ; Reinforced structure and extended component service life • Standardized components for easy maintenance and reduced spare parts. • Safety guards with interlock switches on access doors in order to maximize the safety during operator intervention.
