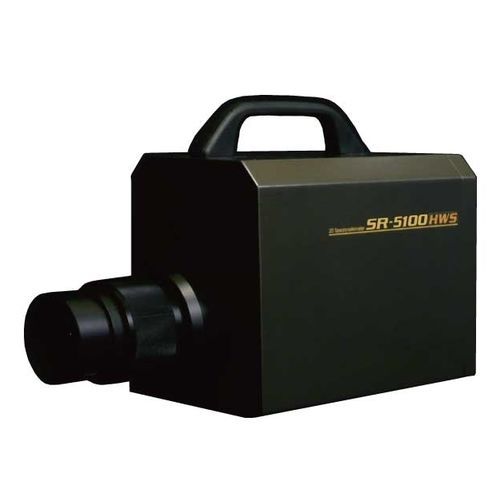

VIS spectroradiometer SR-5100

high-precisionmeasurement

“2D Spectroradiometer for Display Luminance, Contrast and Automotive Lighting Evaluation” High-resolution 2D spectroradiometer (5 MP, up to 17 billion cd/m²) for luminance, color, contrast, and uniformity testing of displays, instrument clusters, HUDs, and automotive lighting. Detail: ■The SR-5100 is a versatile 2D spectroradiometer designed for display and automotive lighting evaluation.　 It enables engineers to perform high-precision luminance, color, contrast, and uniformity (mura) analysis, helping to　　　improve cockpit readability, display quality, and lighting performance. Unlike spot meters, which cannot evaluate uniformity, contrast, or luminance and chromaticity across an entire display in a single measurement, the SR-5100 uses two-dimensional imaging to capture millions of connected pixels at once. This makes it possible to quickly detect non-uniform areas, contrast variations, and chromaticity shifts with high spatial resolution. ■With a 5-megapixel CMOS sensor (2448×2048 pixels), a wide measurement range from 0.005 to 17 billion cd/m², and 1 nm spectral resolution (380–780 nm), the SR-5100 delivers accurate results for both R&D and production quality ssurance. ■Key user benefits: -Faster measurement – capture millions of points in one shot -Objective evaluation – visualize and quantify uniformity, contrast, and chromaticity -Non-contact & non-destructive – test prototypes or finished products without damage ■Applications: -Display testing – OLED, LCD, mini-LED, micro-LED, AR/VR panels -Automotive – instrument clusters, HUDs, cockpit displays, interior/exterior lighting -Switches & indicators – backlit buttons and panels for visibility and contrast optimization By reducing testing time and eliminating subjective evaluation, the SR-5100 supports faster development cycles, reliable quality assurance, and innovative display and lighting solutions. ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Ultimate and Versatile. High resolution 5 million pixels (2448x2048) and high luminance 17 billion cd/m2 metrology instrument Outline 2D spectroradiometer is high precise and accurate measurement by 1nm spectral technology with powerful data analysis software. By Non-Destruction and Non-Contact, a spectroradiometer instrument that contributes to maintaining high quality of various products as it can evaluate the spectral characteristics of light sources or objects in units of 5 million pixels, 17 billion cd/m2 and 1 nm, such as wavelength characteristics of light sources, spectral transmittance characteristics of materials. The 2D spectroradiometer SR-5100, analyzes the unique spectra of an object and can be used not only in the characteristics and luminescence products that could not be evaluated by the filter method imaging colorimeter or the human eye, but also in the reflective light and simulation evaluation of an object. It can be used for a wide range of industries and applications, including micro/mini LED displays that are speeding up development, related materials, texture of materials, skincare, textile dyeing, landscape, etc. High resolution 5 million pixels (2448×2048) and high luminance (17 billion cd/m2) spectral measurement Non-destructive and non-contact, 5 million points of spectral evaluation of the characteristics of light sources and objects such as wavelength characteristics of light sources, spectral transmittance characteristics of materials, and spectral reflectance characteristics of objects can be performed with high accuracy.
