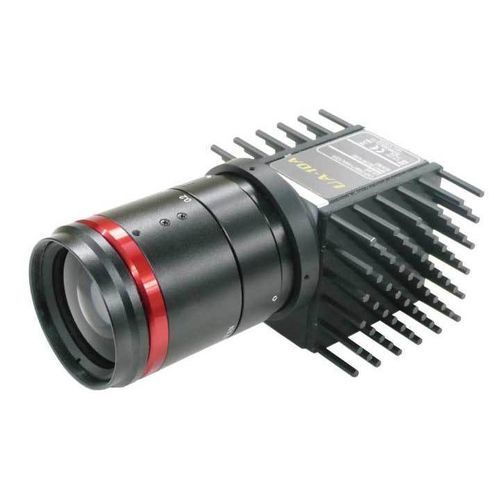

Uniformity for luminance and chromaticity analyzer UA-10A

for quality controlcompactinspection

Luminance & chcromaticity uniforimity instrument realizes high-precision evaluation. It is also small and light wight, fast measure and providing an SDK for external control as a specification that is optimal for the production process. Uniformity analyzer UA-10A is an imaging instrument that realizes high-precision evaluation with small/light weight. Provides an SDK for external control as a specification that is optimal for the production process Features ■ High speed uniformity measurement • 2.3 megapixel CMOS camera • 3 types of lens deformation (standard/wide angle/telescope) ■ Wide range brightness measurement • Standard: 0.1 – 80,000 cd/m² / ND filter (optional): 10 – 800 million cd/m² • Micro LED, Mini LED Device Assessment ■ Optimal specifications for the production process • Small/lightweight (palm size) • External control SDK provided as standard accessory ■ Analysis software • Measurement/Analysis Application Software CI-100 • Features various View modes, measurement results display, and various evaluation and analysis functions
