GENERAL INFORMATION
Type of installation

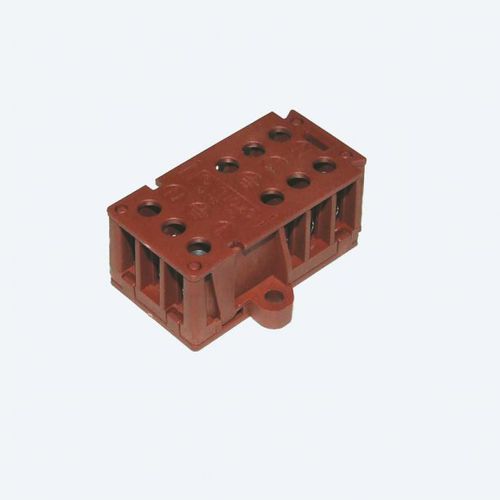

Joint connector (re-usable/re-accessible)
Product configuration
In-line connector
Colour
Brown RAL7021
Overall dimensions (mm)
20.6 x 38.5
ELECTRIC DATA
No. connected cables
2
Circuit wiring diagram
Power/Signal
Current rating (AC/DC)
32A
Voltage rating (AC/DC)
450V AC
No. poles
3
Marking
L-N-E
Terminations
Screw
CONNECTION DATA
Multi-stranded conductor cross-section without ferrule MIN (mm²)
0.50
Multi-stranded conductor cross-section without ferrule MAX (mm²)
4.00
Solid conductor cross-section MIN (mm²)
0.50
Solid conductor cross-section MAX (mm²)
4.00
Cable sheath stripping length (mm)
8.00
Reccomended types of cable
H05xxx/H07xxx
ENVIRONMENT CONDITIONS
IP rating
IP00
Salt Mist
Salt mist test : EN60068-2-11:2000
T marking
T 125°C
Proof Tracking Index (PTI)
PTI 175
MATERIALS
Exterior body
PA66 GF UL94 V0
Contacts
Brass
Contact screws
Steel
