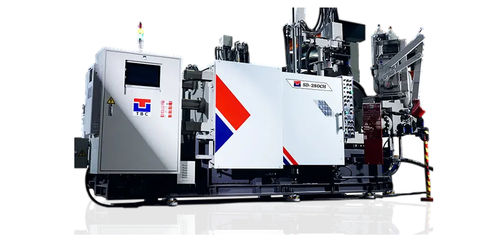

High-pressure die casting machine CH series

cold chamberfor aluminum

Overview
The CH Series is an intelligent cold-chamber aluminum die casting machine. It uses an imported energy-saving system and a proportional valve for low-speed control, providing more accurate multi-speed injection than traditional systems. It is suitable for air-tight castings.

CH Series features

• High-speed injection up to 8 m/s and acceleration up to 80G.
• Complete data management: die clamping force display, furnace temperature interface, oil temperature alarm, defective detection and other systems. Storage for 500 mold parameter sets.
• Equipped with advanced auxiliaries: toggle-arm automatic ladle and servo sprayer to improve production efficiency and quality.
• Advanced data management functions with optional expansion to 1,000 parameter sets in the electronic control.

CH Series Injection

• Dual hydraulic system with independent intensification accumulator: separate accumulator for intensification prevents pressure interference during high-speed injection. Intensification pressure is set independently. Suitable for 500 ton machines and above.
• Meter-in injection system: hydraulic circuit designed for 80G acceleration and up to 8 m/s. Uses German proportional solenoid valves for precise multi-phase low-speed control to reduce casting porosity. Standard on TBC CH models.

CH Electric Control

• Vacuum system interface.
• Injection parameters saved up to 300 sets (electronic control may extend mold parameter storage up to 1,000 sets).
• Squeeze pin interface.
• 15-inch touch screen for operator setup; upgraded injection data functions.
• Digital clamping force display integrated with injection data.
• Advanced electronic controls: defective detection, injection data upgrade, extended mold parameter storage (up to 1,000 sets).
• Abandoned casting setting (warm-up shots): performs low-speed shots after long shutdowns to avoid defective castings from cold molds.

Mechanical Structure & Options

• Hydraulic oil filter device.
• Remote data collection system for mobile or laptop monitoring.
• Energy-saving system with German Eckerle pump and new control system; power consumption reduction of ~30% for machines over 500 ton.
• Movable platen reinforcement plate to prevent platen deformation and ease replacement.
• Quick mold change system with special hydraulic clamp; integrated into TBC electronic control.
• Automatic safety door with frequency-converter motor control; synchronized automatic open/close; installable on operator and non-operator sides.
• Option to increase number of cores according to tonnage model.

Visual / Auxiliary Highlights

• Multiple mechanical layouts available: C type, Standard type, Link type.
• Auxiliaries: automatic ladle (molten metal volume calculation), automatic sprayer, automatic extractor, movable platen reinforcement plate, piston-type accumulator, fixed-platen side spray, full-cover automatic safety door and quick mold change system.

Mechanical Specification (selected full multi-model table reproduced)
Item | Units | SD-280 CH | SD-420 CH | SD-580 CH | SD-730 CH | SD-900 CH
Die locking force | kN | 2800 | 4200 | 5800 | 7300 | 9000
Die platen dimensions (HxW) | mm | 850x904 | 1010x1010 | 1090x1180 | 1230x1230 | 1400x1400
Space between tie bars | mm | 584x584 | 652x652 | 750x750 | 852x852 | 931x931
Tie bar diameter | mm | 110 | 125 | 150 | 160 | 190
Die stroke | mm | 380 | 420 | 560 | 660 | 760
Die thickness | mm | 250~600 | 300~700 | 350~850 | 350~900 | 400~950
Solenoid valve for core | pcs | 3/8x1 | 3/8x1 | 1/2x2 | 1/2x3 | 1/2x3
Hydraulic outlet | set | 1/2x2 | 1/2x2 | 3/4x3 | 3/4x5 | 3/4x5
Injection force | kN | 265 | 354 | 506 | 550 | 653
Plunger stroke | mm | 370 | 425 | 580 | 670 | 750
Plunger-tip projection distance | mm | 150 | 165 | 250 | 300 | 350
Injection port position | mm | -125 | -150 | -175 | -175 | -250 or -275
Dry shot speed | m/s | 6 | 6 | 6 | 6 | 6 (variants: 6|7|8 available per model)
Plunger-tip diameter | mm | Min.50 Sta.60 Max.70 | Min.60 Sta.70 Max.80 | Min.70 Sta.80 Max.90 | Min.70 Sta.80 Max.90 | Min.80 Sta.90 Max.100
Maximum casting pressure | MPa | 132.8|92.3|67.7 | 109.9|80.6|61.7 | 117.7|90|71.1 | 140.5|107.7|85.1 | 130|102.8|83.1
Casting area | cm² | 184|265|361 / 287|413|563 | 312|425|555 / 485|661|864 | 416|544|688 / 624|816|1033 | 462|604|764 / 582|760|962 | 653|826|1022 / 904|1144|1414
Actual shot weight (Al) | kg | 1.40|2.02|2.75 | 2.35|3.20|4.18 | 4.35|5.68|7.19 | 5|6.6|8.3 | 7.3|9.2|11.4
Ejection force | kN | 123.5 | 190.1 | 259.7 | 300 | 340
Ejection stroke | mm | 80 | 100 | 110 | 125 | 125
Hydraulic motor | kW | 18.5 | 22.5 | 37 | 37 | 45
Amount of hydraulic fluid | L | 370 | 480 | 700 | 800 | 860
Amount of cooling water (oil) | L/min | 25 | 25 | 80 | 80 | 150-180
Amount of cooling water (die) | L/min | 25-50 | 25-50 | 50-90 | 50-90 | 150
Machine weight | ton | 9.4 | 12.8 | 23 | 30 | 50
Machine size | mm | 5613x1650x2616 | 6275x1835x2975 | 7590x2065x3345 | 8046x2335x3413 | 9990x2450x3556

Controller / Platen / Core / Injection / Hydraulic & Cooling / Safety / Others (options overview)

• Controller: color touch screen (standard), alarm display, injection parameter setting and display, injection curve display, injection speed & pressure display, magnetic non-contact sensor, motorized injection valve, die-cast condition management.
• Platen: cycle time setting, die open lubrication, ejection stroke setting from screen, movable platen adjustment, toggles auto lubrication, auto tie bar puller (optional depending on model).
• Core: movable cores 1 & 2 standard on some models; fixed core 3 available on larger models; selectable core movement timing and pressure during injection.
• Hydraulic & cooling: hydraulic oil temperature & level sensors standard; hydraulic oil filter device, auto pressure release and enhanced cooler available depending on model.
• Safety: manual safety door standard; full-cover auto safety door, non-operator side safety fence, emergency stop available as options.
• Auxiliaries: automatic ladle with molten metal volume calculation, automatic sprayer with height auto-adjust and vertical movement, automatic extractor with die height auto-adjust, fast automatic production modes.

Technical characteristics / specifications

• Series name: CH Series (Cold-chamber aluminum die casting machine).
• High-speed injection capability: up to 8 m/s; acceleration up to 80G.
• Injection system: Meter-in injection with German proportional solenoid valve; dual hydraulic system with independent intensification accumulator on larger models.
• Control: 15-inch touch screen, digital clamping force display, mold parameter storage (300–1,000 sets depending on function level), defective detection and abandoned casting setting.
• Energy saving: German Eckerle pump option and energy-saving control to reduce power consumption (~30% for >500 ton).
• Available models & nominal die locking force: SD-280 CH (2800 kN), SD-420 CH (4200 kN), SD-580 CH (5800 kN), SD-730 CH (7300 kN), SD-900 CH (9000 kN).
• Representative machine weights: from ~9.4 ton (SD-280 CH) up to 50 ton (SD-900 CH).
