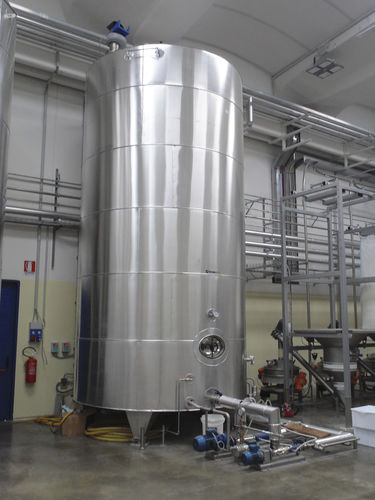

Storage tank
for liquidsstainless steelaluminum

storage tank
storage tank
storage tank
storage tank
storage tank
storage tank
storage tank
Add to favorites
Compare this product


Characteristics

Function
storage
Product applications
for liquids
Material
stainless steel, aluminum
Type
cylindrical, double-walled
Applications
for food applications
Other characteristics
aseptic, pressure
Capacity

Max.: 30 m³ (1,059.4 ft³)

Min.: 5 m³ (176.6 ft³)

Description

BENEFITS Exceptionally hygienic and safe storage of any type of liquid in ideal conditions: temperature, consistency, aseptic, etc. APPLICATIONS External or internal storage of bulk liquid raw materials from tankers or in any other form with dedicated loading system. The tanks directly feed production via transfer and dosaging lines. ACCESSORIES •Double wall insulation in rock wool and stainless steel. •Double chamber with liquid circulation for thermostatic control (refrigerant or heating). •Nitrogen blowing for internal environment inertization. •Content control through weighing cells and weight display. •Agitators of various sizes and shapes suitable for the materials stored. •Internal pressure control. •Inline filters. TECHNICAL DATA •Structural accessories in stainless steel or aluminium. •Storage capacity from 5 to 30 m3. •Diameters made to measure. •Load capacity up to 30,000l/h. •Suitable for materials with an apparent specific weight of up to 1.5 kg/dm3. •Complies with food hygiene regulations (EC regulation 1935/2004). •Construction complies with DIN 1055 standards and UNI ENV 1991-4 Eurocode. •Construction material fully recyclable after disposal.
