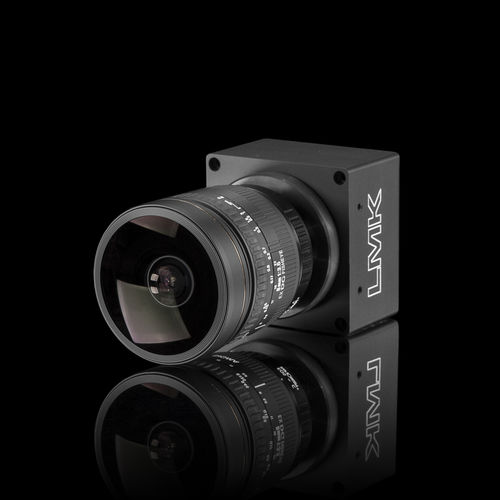

Digital luminance meter LMK 6

compact

The LMK 6 is the center-piece of the entire LMK product family and optimized for your CMOS image sensor as it is equipped with a full color glass filter. Each camera has a unique filter glass made for it, which ensures a high-quality V(λ)-adaptation. The LMK 6 is robust in construction, lightweight and has compact dimensions. So, it can be used in almost every process for a wide range of lighting measurement tasks. In conjunction with the supplied system and measuring software, LMK6 can be used in areas of application where imaging determination and evaluation of luminances is required. A large selection of high-quality standard lenses and special imaging systems in combination with an interchangeable lens mount further increase the flexibility of the LMK 6. As a result, the LMK 6 is able to meet a wide range of requirements and combines a wide variety of measuring devices in one system. Flicker detection With the use of a CMOS image sensor array, it is not necessary to transfer a complete image during image acquisition (global shutter). Rather, the CMOS technology makes it possible to partially read the image data. For example, individual image pixels or image lines (rolling shutter) can be recorded. Using this option, it is possible to realize a very fast image capture.
