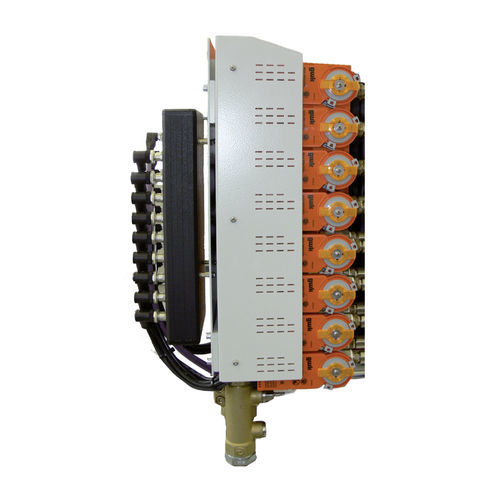

Water manifold integrat direct

for temperature control circuits

Water distributor with automatic valves The multiple water quantity control system in modular design that is available in several versions fulfils not less than three requirements at the same time. It combines the advantages of the conventional water distributors, the impulse cooling systems and the continuously operating temperature control units while eliminating the disadvantages of each of these systems. The temperature control system disposes of up to 128 individually adjustable circuits and is suitable for the processing of polyolefins and technical thermoplastic materials. In case of the basic execution (itd B) the requested flow rate is adjusted manually and is then monitored by a flow meter and presented digitally and graphically on the central display of the control unit. In the standard execution (itd R) the water quantity is individually set for each circuit at the central operating unit and - if necessary - is readjusted automatically via a water quantity regulation valve within adjustable limit values.
