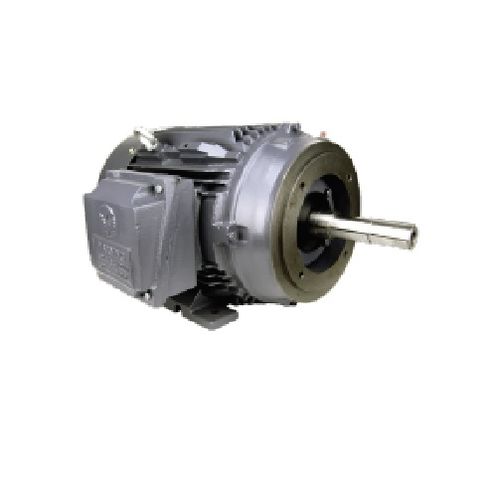

Asynchronous motor GR3-AL-TF Seriesthree-phaseIP554-pole
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Protection class
- IP55
- Number of poles
- 4-pole, 2-pole
- Applications
- for pump
- Other characteristics
- low-voltage
- Power
Min.: 1 ch
(1 hp)Max.: 75 ch
(75 hp)- Rotational speed
1,800 rpm, 3,600 rpm
(11,309.7336 rad.min-1, 22,619.4671 rad.min-1)
Description
Standard Features
- IP 55 Rated
- MG1 Part 31 for VFD use
- Continuous Duty
- Dual Voltage
- 1.15 Service Factor
- 40°C Ambient Temperature Rating
- Rubber Slinger
- Double Lip Oil Seals
- 1045 Carbon Steel Shafts
- Dual Oversized Bearings
- Multi mount Removable Feet
- Conduit Box is 90° Rotatable
- Stainless Steel Nameplate
- Tropicalization on Stator Winding - - Inverter Rated - 20:1 Variable Torque
- One-Way Brass Condensation Drains
- Regreasable Bearings 254 Frame & Larger
- F1, F2, F3 Field Convertible (Shipped F1)
- Class H Insulated Stator with Class F Leads
- Class 1, Div 2, Groups A, B, C & D Compliant
- 24 Month Warranty from Purchase Date
