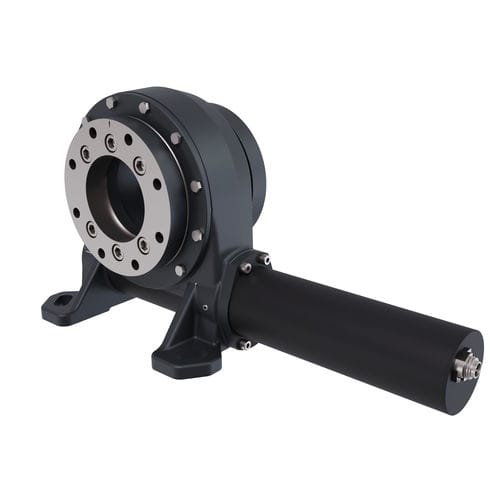

Solar tracker slewing drive TV

slewing ringworm gearcompact

Solar sector slew drives The JV slew drives serie (vertical version) is a robust solution of a vertical drive system, driven by a closed gear, developed mainly for the solar sectorm although they could serve perfectly in industrial applications. •Different versions of internal ratio from 40:1 to 537.3:1 •High dynamic and static torques •Low maintenance which helps in the optimization of costs of the same •Varierty of systems and sizes connection torque central tube, circular flanges, hexagonal •version of flange or square flange •Versatility of sizes from 5 “to 21” with which helps to define a correct product in each type of design •Advanced sealing prepared for humid environments and high level of corrosion •Design elasticity variantion •Different levels of precision; integrated mechanical stop according to customers request •High protectiion grade IP, ranges 65 and 66 •Paint protection flexibility C3-C5, variety of RAL accoding to customer specifications •Design optimizations from the base to the center, which significantly helps to optimize the cost of the tracker.
