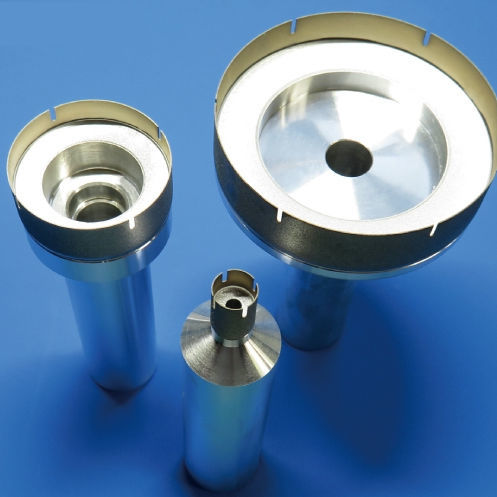

Diamond core bit

for glassfor ceramicsfor coring

Overview
All-blade core drills are constructed with the cutting edge entirely composed of grindstone and without a base part, enabling extended tool life and an extremely thin cutting edge that improves processing quality.

Features

• All-Blade structure
  • Blade thickness can be reduced compared with electrodeposited and sintered tools
• Significant improvement in tool life
  • Entire blade composed of grindstone can provide tool life several tens of times longer than single-layer electrodeposited tools (depending on processing conditions)
  • Tool life also multiple times longer than sintered tools (depending on processing conditions)
• Improved processing quality
  • Thinner blade reduces chipping and improves dimensional quality compared with electrodeposited and sintered tools
• Reduction of processing time
  • Double core drill enables simultaneous machining of inner and outer diameters, improving consistency and shortening cycle time
• Customization possible
  • Tool diameter, shank diameter, diamond grain size and other parameters can be customized to application

Standard specifications — Single core drill
Shank diameter (mm): φ10 or φ20
Tool diameter (mm): φ4 ~ φ100
Diamond grain size: ＃400
Blade thickness (mm): 0.25
Blade length (mm): 6

Standard specifications — Double core drill
Shank diameter (mm): outer blade φ20 / inner blade φ10
Tool diameter (mm): outer blade φ16–φ100 / inner blade φ4–φ50
Diamond grain size: ＃400
Blade thickness (mm): 0.25
Blade length (mm): 6

Markets / Applications

• Glass rotary encoder components
• Glass disk machining
• Coring (round hollow processing) in various glasses
• Coring of ceramics, SiC, composite materials and crystalline materials

Technical characteristics / Specifications

• Product family: Diamond Tools (All-blade core drills)
• Construction: All-Blade — cutting edge entirely composed of grindstone (no base part)
• Benefits: extended tool life vs electrodeposited and sintered tools; extremely thin cutting edge for improved processing quality; double core drill option reduces processing time
• Customization: tool diameter, shank diameter, diamond grain size customizable
• Single core drill — Shank diameter: φ10 or φ20; Tool diameter: φ4–φ100; Diamond grain size: ＃400; Blade thickness: 0.25 mm; Blade length: 6 mm
• Double core drill — Shank diameter: outer φ20 / inner φ10; Tool diameter: outer φ16–φ100 / inner φ4–φ50; Diamond grain size: ＃400; Blade thickness: 0.25 mm; Blade length: 6 mm
• Note: actual tool life and performance depend on processing conditions
