Disc deburring cell TM 250

finishingdeslaggingfor gears

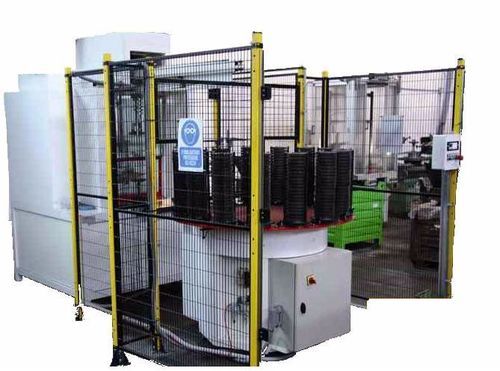

Machine description The robotic deburring cell designed and manufactured by Tecnomacchine consists of a TM 250 rotary-table deburring machine, a Rotostore TM 15 rotary magazine and a 3-axis manipulator that performs robot tasks at substantially lower cost. The TM 250 is equipped with wear‑resistant CBN diamond wheels and can process both spur and helical gears. In the same machining cycle, deburring is performed simultaneously on the upper and lower faces of the gear.

Additional information Category: AUTOMATIC DEBURRING MACHINES
Date: 20 November

Multimedia and documentation A PDF technical datasheet is available for the machine and a demo video is linked on the product page.

Features / technical specifications

• Deburring machine: model TM 250 (rotary table)
• Wear‑resistant CBN diamond wheels
• Suitable for spur and helical gears
• Simultaneous deburring on upper and lower faces
• Rotary magazine: Rotostore TM 15 with 15 turrets 450 mm high each
• Rotostore capacity: over 6.5 m of gears at full load
• Maximum wheel/gear diameter loadable: 180 mm
• Rear loading area for safe load/unload while the machine continues cycles
• 3‑axis manipulator for masked‑time loading/unloading
• Manipulator capacity: up to 10 kg
