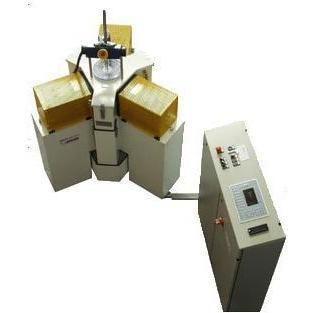

CNC drilling machine TM T3

3-axis3-spindleautomated loading/unloading

Description
The TM T3 is a CNC drilling machine designed for drilling gears that require internal lubricant passages. It is equipped with three drilling units offset by approximately 120° and is managed by a three-axis CNC control: X for radial feed of the drills, Y and Z for angular rotation and workpiece height. The TM T3 can perform central, upper and lower holes on 1, 2 or 3 suitably staggered rows, operates up to 350 pieces per hour and can be fitted with an optional robotized loading/unloading system.

Characteristics / Technical specifications

• Category: DRILLING MACHINES
• Type: CNC drilling machine for gear drilling
• Drilling units: 3 units offset by approximately 120°
• Controlled axes: 3 axes (X, Y, Z)
• Axis X function: radial feed of the drills
• Axes Y and Z function: angular rotation and workpiece height
• Drilling types: central, upper and lower holes on 1, 2 or 3 staggered rows
• Production: up to 350 pieces per hour
• Optional: robotized loading/unloading system
