Surface geophone G1- GEO POZZO

3D

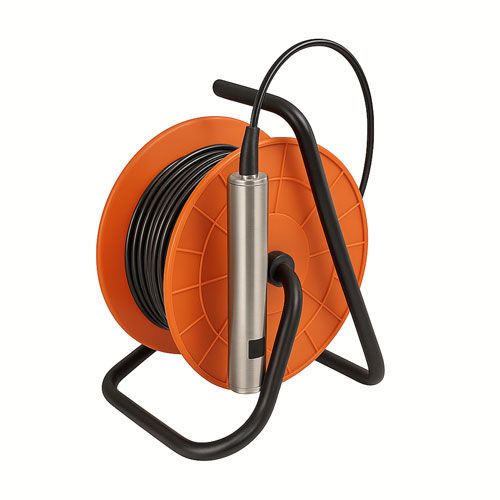

The well geophone G1-GEO 3D is an instrument designed to carry out seismic surveys in boreholes (DOWN-HOLE). The main part of the instrument is the stainless steel probe, which hosts three geophones with the measurement axes oriented in the three dimensions of space. It is attached to a cable which has the dual purpose of supporting the instrument during descent and bringing the data to the surface. The adhesion of the probe to the walls of the well is obtained by inflating a double air chamber (the external one is replaceable) placed laterally on the sensitive part. Three-axis geophone compatible with D1-SISMI 2.0 and all seismic control units supplied by Tecnopenta.
