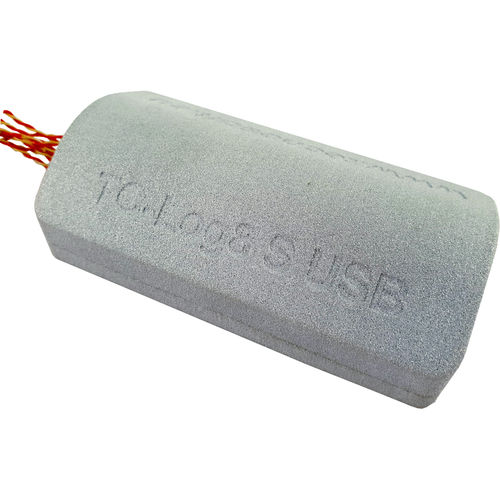

Temperature data-logger TC-Log 8 S USB

USBwithout displayfor food applications

130°C USB device recorder up to 8 thermocouples, no connectors Temperature recorder for all types of thermocouples, up to 8 channels, resistant up to 130°C. It is possible to connect any type of thermocouple directly to the internal block. Operative range of the device is from -60°C to 130°C. User replaceable battery. Any connection bay requested, direct USB connection to PC. Thermocouples not included. Main features • Compact and robust • High temperatures resistant • Quick response time • USB direct connection to PC • Reduced size • Real time monitoring if connected to a PC via the USB interface • User calibrable Plus • Easy to use • You can use your own thermocouples and calibrate it with them • You can connect different types of thermocouples simultaneously • Real time The system System components: • TC-Log 8 S USB • Thermocouples • TC-Log software Dimensions 95 h X 50 X 26 (mm) Weight 90 g Temperature range -60°C ÷ +130°C Materials Alumide Number of channels 8 Available thermocouples K, J, T, N, E, R, S, B, G, C, D Temperature resolution 0,1 °C Temperature accuracy For logger only, sensors excluded: ± 0,2 °C with Accredia traceable certificate (calibration at -40/25/125°C) Temperature accuracy For logger only, sensors excluded: ± 0,2 °C with Accredia traceable certificate (calibration at room temperature) Temperature accuracy For logger only, sensors excluded: +/- 0,5°C range 0°C ÷ 75°C; +/-1°C range -40°C ÷ 0°C and 75°C ÷ 125°C without calibration Stability time Internal stability after a 50°C shock: 20 minutes Memory (n. of acquisitions) 104.855 with only 1 channel, 16.383 with all 8 channels (for complete information check proper document)
