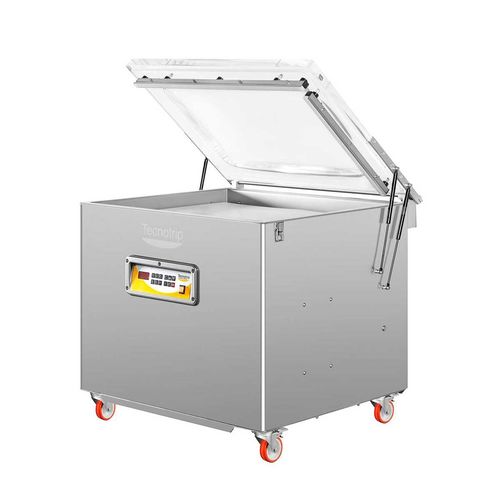

EV-25 single chamber vacuum packer medium large size production
EV-25 Single-chamber vacuum packer. Its rectangular shape allows medium-sized pieces to be packed (cold slice, meat, hams, etc.) or several bags at the same time.
CHARACTERISTICS
Several sealing bar possibilities.
Bench and vacuum chamber in stainless steel.
Easy maintenance and cleaning.
Optional installation for gas injection.
Vacuum packer equipped with Busch pump 100 m3/h.
Possibility of pump of 150 m3/h.
Vacuum chamber dimensions: 1120x715x220 mm.
Digital control system.
Manufacture according to CE regulations.
Features
Easy maintenance and cleaning
Manufacture according to CE standard
Technical data
Exterior dimensions/mm: 1278x802x1086
Chamber dimensions/mm: 1118x715x218
Cycles/min: 2/3
Power/Kw: 2,7 / 4
Electrical connection: 220/380V 50/60Hz 3ph
Weight/kg: 380
Equipment
Pump: 100 and 150 m3/h
Digital programmer: Compact system
Sealing: SS, SC, SD
Gas
Information about the digital programmer
30 programs to select
Vacuum control by sensor
Supplementary vacuum function
Progressive vacuum program
Gas control by sensor
Progressive air inlet “SOFT-AIR”
Vacuum verification program
Manual stop vacuum
Programa de test
Cycle Counter
Test program
Oil change Control
Pump preheating program
Control sealing (SS) *see descriptions on the web
Accessories and consumables
Baggers and vacuum bags
