Swivel extractor AUBH

Description

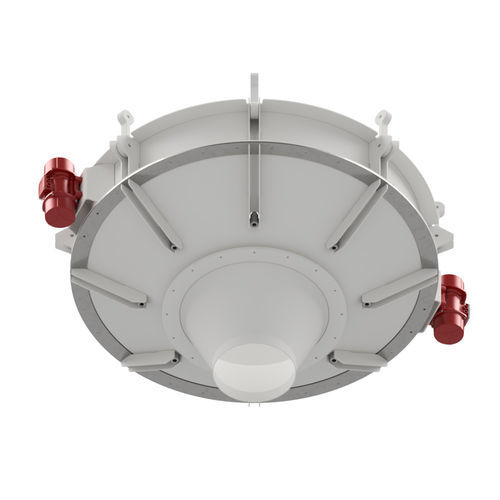

The AUBH vibrating hopper bottoms by Tec.s.i.m. are inverted‑cone devices available in a wide range, designed to facilitate discharge of bulk materials from silos and hoppers by means of vibration. They are composed of a cone in carbon or stainless steel, an integrated polymer gasket flanged top and bottom, suspension links connecting the vibrating bottom to the silo, and one or two ITALVIBRAS electric vibrators. A welding flange supplied with or before the vibrating bottom is welded to the silo cone in situ; the special suspensions and polymer gasket form a flexible connection between silo and vibrating bottom.

Materials and components

• Cone in carbon steel or stainless steel
• Integrated polymer gasket, flanged top and bottom
• Suspensions for connection between vibrating bottom and silo
• One or two ITALVIBRAS electric vibrators
• Welding flange for silo cone (supplied)

Installation and connection
A welding flange is fitted to the silo cone on site; special suspension elements and the polymer gasket provide a flexible, sealed connection between the silo and the vibrating bottom, simplifying installation and maintenance.

Operation
The electric vibrators mounted on the bottom generate a vibration that produces a circular movement of the entire cone. This motion is transmitted to the material inside the silo, promoting a homogeneous flow toward the discharge and the downstream dosing/transport equipment. Activation occurs when the downstream extraction device operates.

Compliance

• Machine Directive 2006/42/EC
• Electromagnetic Compatibility Directive 2004/108/EC
• ATEX Directive 2014/34/EU (potentially explosive atmospheres)

Notes
Technical data in the catalogue are indicative and may vary according to project specifications and customer requirements. Each product can be customized during production; a reference technical drawing is available for the standard model.
