Cutting finishing machine LC-350

high-speedlasermodular

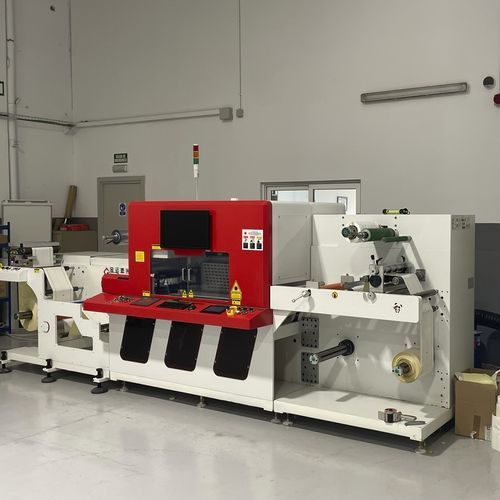

TEC-LASER LC-350 High Speed Intelligent Laser Die Cutting System Modular Custom Design Golden Laser’s high-speed intelligent laser die- cutting system adopts a multi-module, customized and all-in-one design concept It can be equipped with several optional modules according to your processing needs, fully satisfying your individual customization needs. TECHNICAL SPECIFICATIONS Maximun Width ................................... 350mm Max cutting length ............................... Ilimitada Max width of feeding ............................ 370mm Max web diameter ............................... 750mm Max web speed .................................... 80m/min Accuracy ............................................ ±0.1mm Dimensions ......................................... L3700*W2000*H1820mm Weight ................................................ 3500KG Power supply ....................................... 380V - 50/60HZ Air pressure .........................................0.4mpa Laser power ........................................ 2 of 300W unit Laser power output Range .................................................. 5%-80% Power stability ..................................... ±3% Water chiller power ................................ 1.2KW-3KW Exhaust system power ........................... 1.2KW-3KW Beam .................................................. <2mrad full-width remote measurement Line speed ............................................ 6000mm./s
