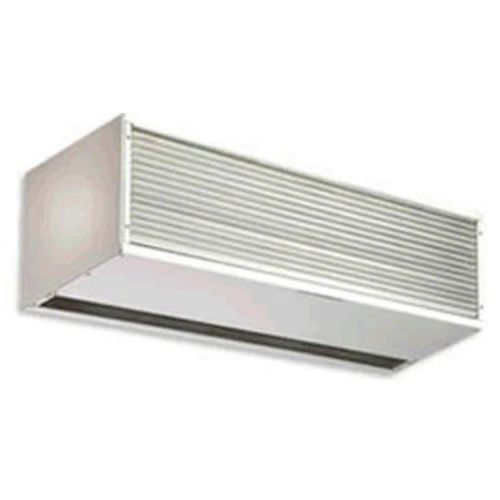

Industrial Electric Heated Air Curtain TEDDINGTON
PSI1000E
Description : Industrial Electric Heated Air Curtain - PSI1000E
Safety thermal Operated Cut-Out.
Supplied with a remote switch unit allowing fan speeds and heat settings.
Technical Data : Industrial Electric Heated Air Curtain - PSI1000E
General Characteristics
Overall length - 1000 mm
Air flow length - 1000 mm
Max. mounting height - 6 m
Height - 400 mm
Depth - 700 mm
Motor power - 1150 W
Noise level - 63/72 dBA
Fan speeds Nos. - 3
Max. air velocity - 17.5 m/s
Air velocity 2 - 15 m/s
Air velocity 1 - 12.5 m/s
Max air volume - 4020 m³/h
Air volume 2 - 3320 m³/h
Air volume 1 - 2800 m³/h
Supply - three phase 380/415 V 3N~
Max input - 38 A per phase
Weight - 63 kg
Mounting - Surface mounted
