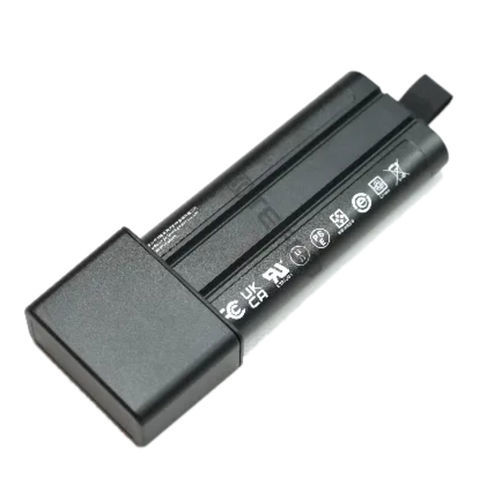

Portable battery charger GSCH040D

Li-ionCEsmart

GSCH040D Portable Charger compatible with the GS2037 series. Features ● Wide range voltage input. ● Lightweight, small volume. ● Efficient and fast charging. ● Compatible with GS2040 series batteries. ● Complete safety protection functions, such as over charging, over discharging, over current, over temperature, short circuit, etc. Application Portable equipment, Industry and medical field. Technical Specification Overview Input interface 2.1φx5.5φDC Output Interface 5PIN Blade smart battery interface Operate temperature -30°C~70°C Charge temperature 0°C~50°C Charging time GS2040CH: 2.4h GS2040FH: 4.2h GS2040IM: 4.8h Electrical performance Input voltage 15-24VDC Input power ≥28W Maximum output power 25.2W Charging efficiency ＞85% Dimensions Length 68.7mm ± 0.3mm Width 32.7mm ± 0.3mm Height 50.6mm ± 0.3mm Weight 60g ± 5g LED instruction Power on Right light on Charging Left light on Fully charged Middle light on Recommended adapter（Optional） Model GSP19V048W55210 Rated voltage /current 19V/2.5A
