Electric motor hydraulic power unit PP600
gasoline engineair-drivenhydraulic motor

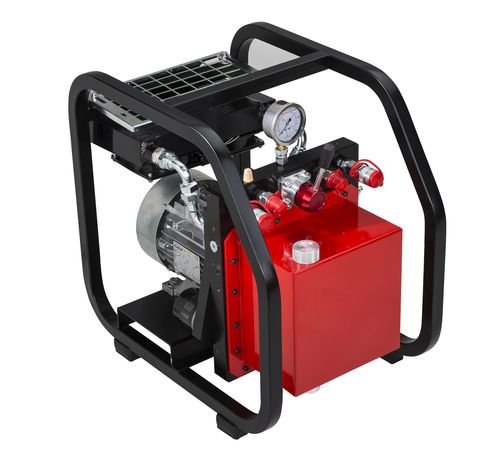

Electric motor hydraulic power unit - PP600 - Tehma SA - gasoline engine / air-driven / hydraulic motor
Electric motor hydraulic power unit - PP600 - Tehma SA - gasoline engine / air-driven / hydraulic motor
Electric motor hydraulic power unit - PP600 - Tehma SA - gasoline engine / air-driven / hydraulic motor - image - 2
Electric motor hydraulic power unit - PP600 - Tehma SA - gasoline engine / air-driven / hydraulic motor - image - 3
Electric motor hydraulic power unit - PP600 - Tehma SA - gasoline engine / air-driven / hydraulic motor - image - 4
Electric motor hydraulic power unit - PP600 - Tehma SA - gasoline engine / air-driven / hydraulic motor - image - 5
Add to favorites
Compare this product
Go to the Tehma SA website for more information

Characteristics

Power source
electric motor, gasoline engine, air-driven, hydraulic motor
Applications
for mobile machines, high-pressure, for construction site, lifting, for torque wrenches, multi-use, for tools, for marine applications, for mining applications, for the metallurgical industry
Other characteristics
compact, mobile, small, high-power, double-pump, with cooling system
Operating pressure

60,000,000 Pa
(8,702 psi)

Min.: 600 Pa
(0 psi)

Max.: 700 Pa
(0 psi)

Nominal power

2 kW
(2.72 hp)

Min.: 2 kW
(2.72 hp)

Max.: 8 kW
(10.88 hp)

Flow rate

Min.: 1.6 l/min
(0.42 us gal/min)

Max.: 5.5 l/min
(1.45 us gal/min)

Tank capacity

5 l
(1.32 gal)

Description

The PP600 TEHMA control unit is an excellent compromise for efficiency, robustness and performance. Its two-stage pump doubles speed and minimizes the downtime when approaching and reopening the blades, in this way cutting speed/frequency and productivity are significantly increased. The machine is available with a 2.2 kW single-phase electric motor, 3.7 kW petrol engine, 7.7 kW hydraulic and 3 kW pneumatic motor. Fitted with the TEHMA MM30 multiplier module, can run up to 3 SP400/SP600 splitting cylinders simultaneously. On demand, can be equipped with dual fan cooling system able to always keep the maximum temperature under control. Excellent compromise for reliability and simplicity, it is ideal when combined with the TR200 / SK200 TEHMA multifunctional trolley.
