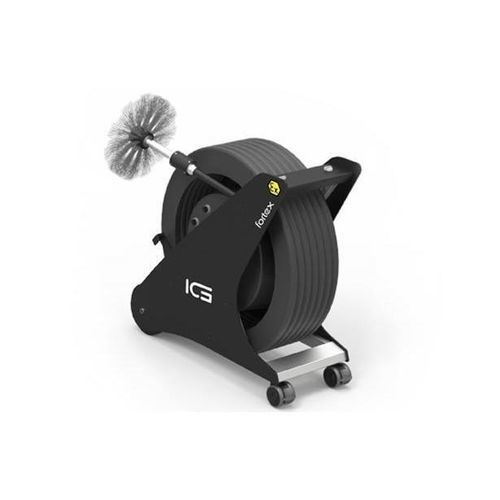

Compressed air cleaning equipment Fortex

industrialfor ventilation pipesvertical

The Ideal Brushing Equipment for Duct Cleaning in ATEX Zones The system uses compressed air to power a powerful motor, housed at the tip of a 30-meter-long flexible hose. It is the most reliable and robust tool for duct cleaning in ATEX zones. Duct Cleaning in ATEX Zones - Powerful pneumatic motor [11.6 Nm max. torque] necessary to remove all types of grease and dirt. - 30-meter semi-rigid hose that allows working vertically [even from bottom to top], horizontally, and making 90º elbows. - 100% stainless steel motor for greater durability and no maintenance required. - Double direction of rotation. - Shaft protector. Facilitates collection and protects the equipment while moving. - Transport handle. Easy handling for transport. - Brushes, with different materials and sizes according to need. TECHNICAL SHEET - Motor power supply (Maximum power): Compressed air 300l/min–6,3bar// 10,6cfm–6,3 bar - No-load rotation speed: 500 rpm - Rotation speed at maximum power: 236.7 rpm - Torque at maximum power: 6.5 Nm // 57.5 lbf.in - Minimum starting torque: 8 Nm // 70.8 lbf.in - Stall torque: 11.6 Nm // 102.7 lbf.in - Sound level: Less than 70 dB - Direction of rotation: Right / Left - Control system: Pneumatic - Control panel: Valves - Dimensions: 1025 x 1162 x 430 mm 40.35 x 48.98 x 16.93 inches - Weight: 67 kg // 147.71 lb - Hose length: 30 m // 98 ft - Structure material: Stainless Steel and HDPE Applications Fortex is the ideal solution for duct cleaning in environments with potentially explosive atmospheres (ATEX zones). Its robust design and maintenance-free pneumatic motor make it perfect for working safely in sectors where the accumulation of dust or grease represents a high risk. This equipment is especially suitable for: - Flour mills - Food and grain processing facilities - Chemical and pharmaceutical plants - Industrial kitchens and fume extraction systems - Chimneys and ducts in ATEX industrial environments Thanks to its 30-meter hose and ability to adapt to elbows and complex layouts, Fortex allows effective cleaning in hard-to-reach areas, both in vertical and horizontal ducts, without compromising safety or productivity. Optional Accessories - COMPRESSED AIR HOSE: 8 meters. - PNEUMATIC ATEX CENTRALIZER: From Ø500 mm to Ø1000 mm Characteristics / Technical Specifications - Powerful pneumatic motor (11.6 Nm max. torque) - 30-meter semi-rigid hose for versatile operation - 100% stainless steel motor, maintenance-free - Double direction of rotation - Shaft protector for safe transport - Transport handle for easy handling - Customizable brushes (materials and sizes) - Compressed air supply: 300l/min–6,3bar - No-load speed: 500 rpm - Max power speed: 236.7 rpm - Torque at max power: 6.5 Nm - Minimum starting torque: 8 Nm - Stall torque: 11.6 Nm - Sound level: <70 dB - Right/Left rotation - Pneumatic control system with valves - Dimensions: 1025 x 1162 x 430 mm - Weight: 67 kg - Structure: Stainless Steel and HDPE
