EMC test chamber TBST series

shielded

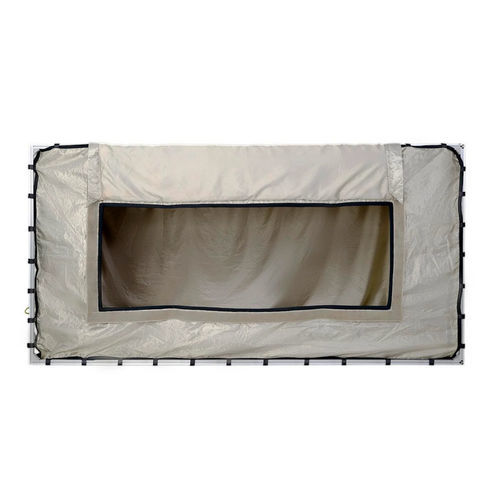

The TBST line of shielded tents is designed to suppress interference from ambient noise when carrying out EMC pre-compliance measurements. With sizes of 120 cm x 60 cm x 60 cm or 86 cm x 49 cm x 45 cm, it can accommodate any Tekbox pre-compliance test equipment such as LISNs or TEM-cells. The shielded tents are composed of two layers of conductive fabrics. It is supported by rigid aluminium profiles. The filter panel at the side provides a 240V/10A mains AC filter (optional for the smaller tent), two general purpose 240V/10A AC/DC filters and four coaxial feed through adapters with screw caps. The access opening is sealed with conductive Velcro tape. Frame: 20 mm x 20mm extruded aluminium profiles Shielding: 2 layers of conductive fabrics Seal: conductive Velcro tape Suspension: Velcro straps Filter panel: 1 x 240V/10A AC filter; IEC socket (optional for the smaller tent) 2 x 240V/10A DC filter; cables with female Banana couplers 3 x N- female feed through connector with screw caps 1 x BNC-female feed through connector Internal AC Socket: pigtail cable with detachable female Schuko Attenuation: up to 50 dB in the range 10 MHz to 6 GHz Weight: 10.8 kg Opening dimensions: 130 cm x 46 cm Frame: 20 mm x 20mm extruded aluminium profiles Shielding: 2 layers of conductive fabrics Suspension: Velcro straps Filter panel: 1 x 240V/10A AC filter; C19 socket 2 x 240V / 10 A AC/DC filters, attached cables with Banana couplers 3 x N-Female coaxial feed-through connectors with screw caps 1 x BNC-Female coaxial feed-through connector with screw caps Internal AC Socket: pigtail cable with detachable female Schuko + country specific AC cables with C13 connector
