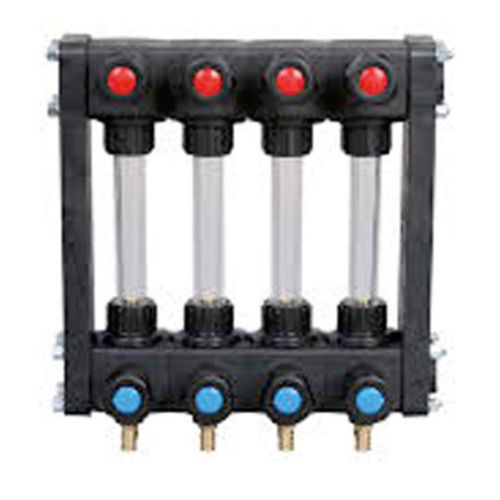

Volumetric flow regulator TFW series

for water

Tube is made of polymaide Bodies are made of PA 6 with 30% fiberglass Regulating laps in brass Thermometer Vitrilic Rubber O-rings Maximum Working Temperature 90°C Standart Features - - Maximum flow rate for each tube is 18 lt/min - - 10 Bar compressive strength at 40 °C, 6 Bar compressive strength at 80 °C - - Thermometer working temperature -10 °C / +110 °C - - PC indicator tubes and reminder ring on the tubes - - Copper float in the indicator tube - - 2 seperate valves on the input and output line for flow adjustment - - Easy cleaning and maintenance with a cleaning brush - - Options with 4, 6, 8, 10, 12 tubes
