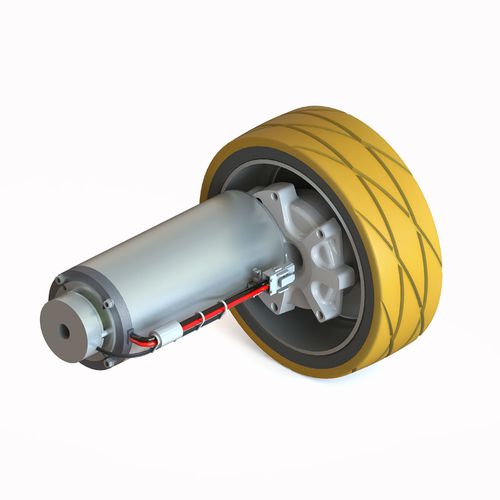

DC drive wheel TK 60
Add to favorites
Compare this product
Characteristics
- Type
- DC
- Torque
Max.: 60 Nm
(44.25 ft.lb)Min.: 4 Nm
(2.95 ft.lb)- Power
0.5 kW
(0.68 hp)- Voltage
Max.: 36 V
Min.: 24 V
Description
Max load on the gearbox 500 kg
Gear ratio 1/7.9
WHEEL SIZE
From Ø 160 to Ø 300 mm
Material: polyurethane, vulkollan, rubber
TRACTION MOTOR
Type AC, DC, BLPM, PM
BRAKE
Electromagnetic
Static brake torque up to 4 Nm
Hand release lever available
Benefits
Compact system
Low noise ground gears
Reduced backlash
Easy attachment to the machine chassis
Fully oil lubricated gearbox
Maintenance-free gearbox
High efficiency 95%
100% tested and certified drive system
Wide range of wheels
Possibility of integration to electronics (power card, encoder, etc)
ISO9001 and ISO14001 certified
Made in Italy
