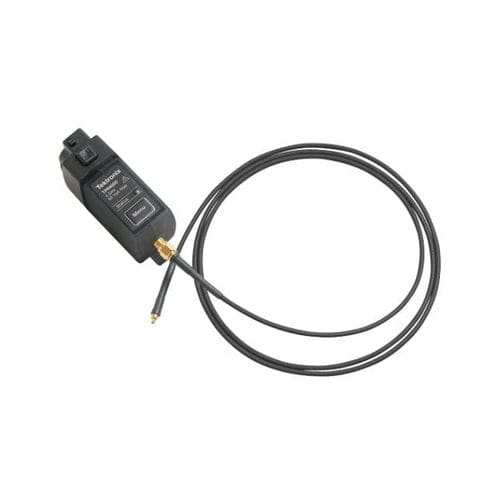

Power probe TPR series

for oscilloscopesfastfor the automotive industry

Optimized for power integrity measurements, these probes combine low noise contribution, DC offset up to 60 V, high bandwidth, low loading, and a wide range of connectivity alternatives. Why use a power rail probe over a passive or differential probe? power rail probe vs passive probe. Cleaner signals with power rail probe Power rail probes offer extreme clarity into the power distribution network compared to traditional passive probes. Traditional power integrity applications typically use passive or differential probes to measure power rails. The changing technology landscape means designers need higher accuracy ripple measurements with very fast transitions pushing into multiple GHz range. New design challenges call for new measurement equipment that can minimize noise from the measurement tools while also offering more bandwidth to see more signal content. The ultra-low noise TPR1000/4000 power rail probe offers low loading for accuracy (especially in the most sensitive measurements) and offers low noise contribution and high bandwidth options. More data, faster signals The new power rail probe covers power rail transient events up to 4 GHz and offers offset voltage range of ±60V to measure power supplies from plug, down to the pin of an integrated circuit. It also offers a wide dynamic range of ±1V, which, on higher voltage rails, lets you look at droop on the line or when a lot of current is drawn by load or transients. Coupled with the right scope, this powerful combination means you don’t have to worry if the noise you are seeing is from your test equipment or if you’re seeing aggressors in your system that you could never see before.
