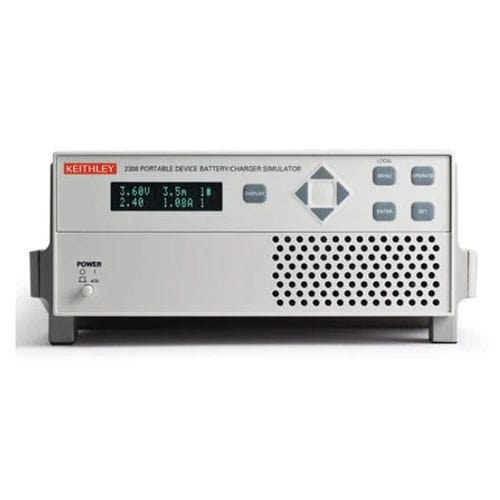

Tabletop power supply 2300 Series

DCsingle-outputdual-output

Testing portable, battery-operated devices under real-word conditions demands a DC power supply that can simulate a battery’s performance over a wide range of conditions. Series 2300 battery simulating power supplies can simulate both a battery's output resistance and output voltage response. The dual-channel versions of these power supplies provide one channel to act like a battery and sink current for simulating a discharged rechargeable battery; the other channel supplies voltage for testing a device’s charge control circuitry. The new 2306-LAN Dual-Channel Battery Charger / Simulator provides a LAN communication interface through the added RJ-45 connector on the rear of the instrument. Ultra-fast response to transient load currents - Provides output characteristics identical to actual batteries. Variable output resistance Allows simulating a battery’s internal resistance. Pulse peak, average, and baseline load current measurements - Supports measuring load currents for power consumption verification or analysis. 100nA DC current sensitivity - Provides the sensitivity needed to monitor the low sleep mode currents of battery-operated products. Current step measure function - Supports measuring the load current at each level of a device’s operational states.
